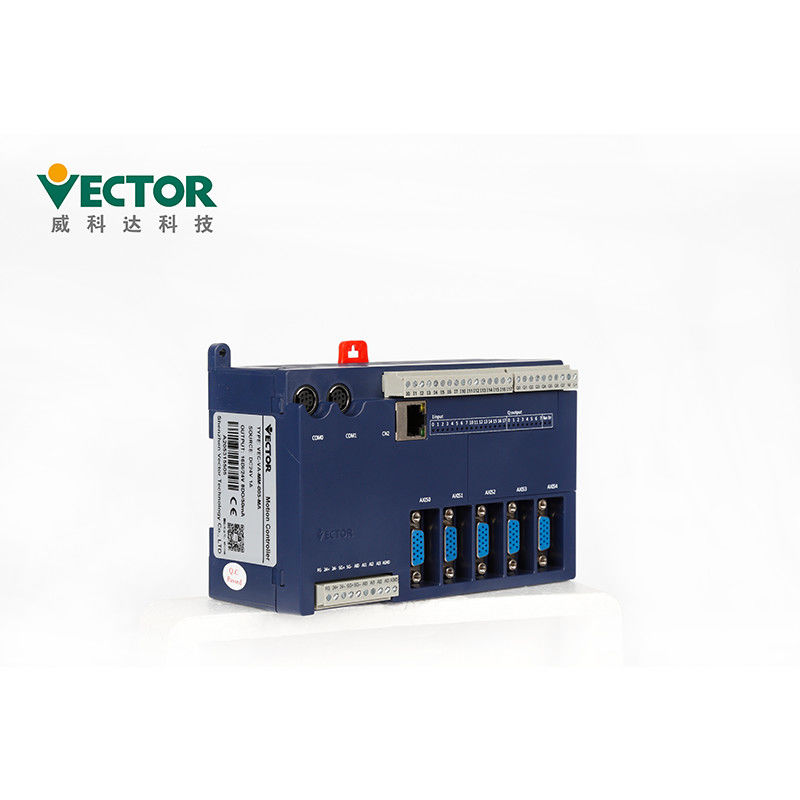

16 DI 8 DO 5 Axis CanOpen Motion Controller For Rotary Knife Cutting Machine

Product Description

MULTIPROG Programming CanOpen 5 Axis Motion Controller For Rotary Knife Cutting Machine

The VA series motion controller uses the MULTIPROG programming tool and supports 5 programming

languages of the IEC61131-3 international standard, making it easy for application programmers to get

started. This motion controller supports three kinds of interfaces: pulse,analog and CanOpen for motion

control.VA series motion controller has 5 servo axis hardware interfaces, which can adopt analog

closed-loop control or pulse semi-closed-loop control.VA motion controller provides a one-stop solution,

supports local IO expansion, Ethernet, serial; supports real-time multi-task control, and has advanced

and easy-to-use simulation tools, and integrates rich motion control function blocks (Including dedicated

modules for the industry), parameter adjustment is convenient, and includes the smoothing of the speed

curve when the function block is switched. The speed curve of the cam function is a 5th degree polynomial

S curve; the motion control cycle of 6 servo axes (Including virtual axis) is small 500 us. This product is actually

the leader in non-bus motion controller products.

Products Features

Thanks to MULTIPROG excellent man-machine interface, just a few easy steps to create a project.

This section describes how to install the software MULTIPROG description, all the software interface

to the end-use configuration MULTIPROG introduced.

MULTIPROG software installation and startup

1) Decompress the installation file of MULTIPROG. The "X" and "Y" in the folder name are numbers. After

decompression, a file named "MULTIPROGX.XXBuiIdYYY" will be generated, indicating the version number

of the installation package. Open the folder, which will appear as shown

2) Double click to open "双击我自动安装" as shown

3) In the pop-up dialog box, check "I accpet.........." as shown.

4) Select the installation path, the user can choose it, here choose the default, click "Next" as shown

5) Click the Install, then wait for the completion of the installation, the installation process may take

some time, as shown.

6) Click "Finish" to complete the installation of the MULTIPROG programming software as shown.

7) Double-click the icon to start MULTIPROG. If the icon does not appear on your desktop, you can also

use the "Start Menu"à"program"à"PHOENIX CONTACT Software"à"MULTIPROG 5.51 Express" to start.

MULTIPROG programming interface presentation

After opening MULTIPROG, you caNSee that it has only one main boundary. According to the function,

it is divided into different areas, as shown.

a. Clear programming structure,standard programming language

b. Support cross-compilation between FBD, LD and IL, and support mixed programming

c. Supports IEC61131-3 programming languages: FBD, LD, IL, ST and SFC

Programming model with standard IEC61131-3

1) The MULTIPROG programming software used by the VA motion controller has a programming language

and program structure in accordance with the IEC 61131-3 programming system. In IEC 61131-3, the

establishment of programs and projects is done in the Program Organization Unit (POU). The unit POU consists

of three parts: PROGRAM, FUNCTIONBLOCK and FUNCTION. It replaces the five functional blocks OB, PB, DB,

SB and FB of the traditional PLC programming language. More efficient and more concise as shown.

2) IEC 61131-3 programming software model is represented by a hierarchical structure, as shown below, the software

model describes the relationship between the various parts, including the configuration, resource, task, program

organization unit, global variables, I / O configuration, etc. . Programming process can program a complex program,

or divided into a number of small modules can also be simultaneously downloaDA plurality of separate programs, running,

or the program into a plurality of tasks to perform, improve the modularity and operational procedures efficiency as shown.

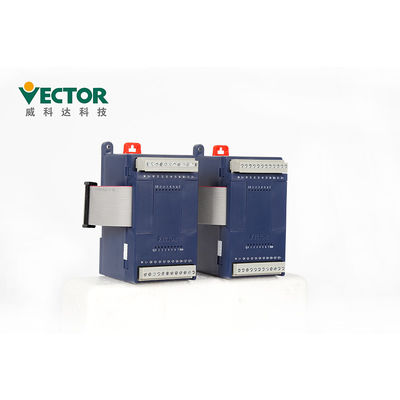

Expansion Units

The host IO expansion module of Vikeda motion controller mainly has 8IO, 16I and 16O. 8IO means that the

expansion module has 8 digital input ports and 8 digital output ports (transistor type output); 16I means that

the expansion module has 8 digital input ports and 8 digital output ports (transistor output). 16 DI ports; 16O

means that the expansion module has 16 DO ports (transistor output); among them, DI and DO can be selected

through jumpers on the motion controller host to select NPN and PNP types

The temperature of the environment where this product is used is -10°C to +40°C. For long-term work,

it is recommended that the ambient temperature be below +40°C. If the ambient temperature exceeds

+40°C, please place it in a well-ventilated place to ensure product reliability. If this product is installed in

a distribution box, the size and ventilation conditions of the distribution box must be such that all internal

electronic devices are not exposed to the danger of overheating, and attention should be paid to whether

the vibration of the machine will affect the electronic devices of the distribution box. In addition, the

conditions of use include the following:

⑴ Places without high-heating devices;
⑵ Places free of water droplets, steam, dust and oily dust;
⑶ Places where there is no corrosive, flammable gas or liquid;
⑷ Places without floating dust and metal particles;
⑸ A firm and vibration-free place;
⑹ A place without electromagnetic noise interference.

Different Expansion units and Functions
