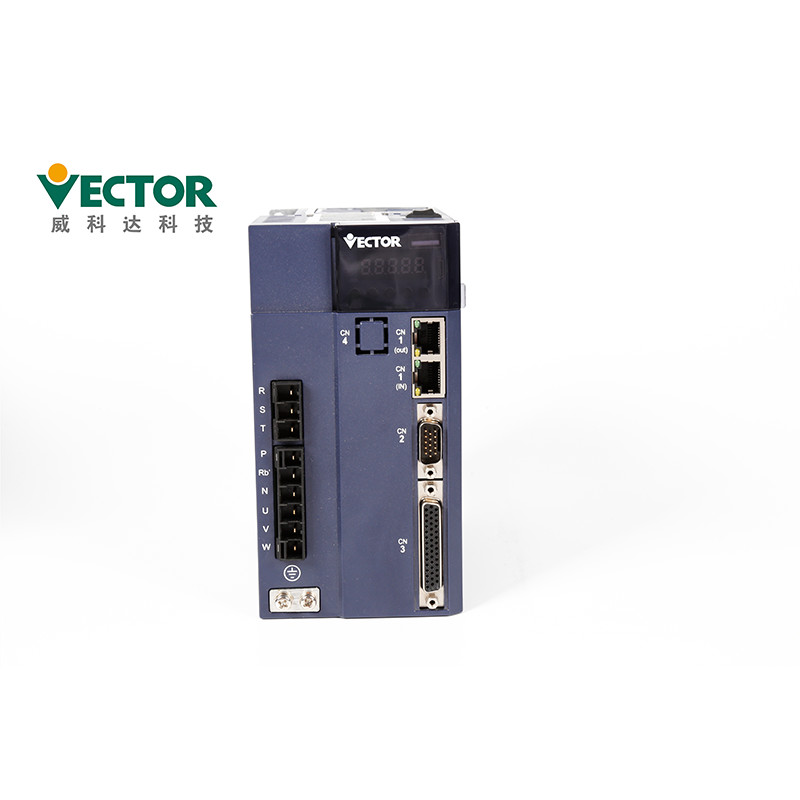

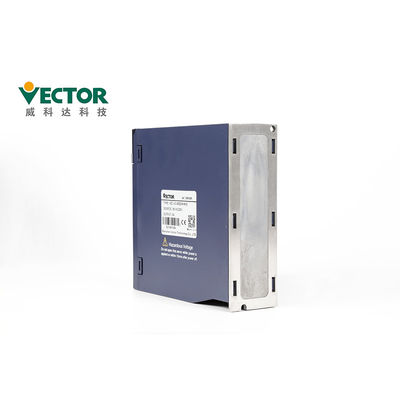

2.2KW Small Servo Drive Servo Motor Amplifier For Chemical Forming Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Vector |
| Certification: | CE |
| Model Number: | VEC-VC-01223H-M-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kit |
|---|---|
| Price: | To Be Discussed |
| Packaging Details: | 280*208*78mm,375*290*155mm |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 kits/month |
|
Detail Information |
|||
| Voltage: | 220V | Power: | 2.2KW |
|---|---|---|---|
| Phase: | Single / Three Phase | Communication Protocols: | CanOpen / Ethercat / Modbus |
| Encoder: | 17/23bit Tamagawa Absolute Encoder; | Rated Current: | 12A |
| Input/Output: | Pulse / Analog | Control Mode: | Torque / Location / Speed |
| Application: | Chemical Forming Machine | Product Name: | Servo Drive 2.2kW For Chemical Forming Machine |
| High Light: | CE Small Servo Drive,2.2KW Small Servo Drive,2.2KW Servo Motor Amplifier |
||
Product Description
AC Servo Motor, 380V 5.5kW Servo Drive For Cardboard Cap Molding Machine
Servo Drive 2.2kW For Chemical Forming Machine
AC Power 2.2KW
Single/Three Phase 220V
Modbus / CanOpen / EtherCAT
Location / Speed / Torque Control Mode
17/23bit Tamagawa absolute encoder;
Products Description
| Product Name | AC Servo Motor Drive For Textile Machine |
| Brand | Vector |
| Model No. | VEC-VC-01223HC-M-E |
| Power | 2.2KW |
| Input/Output | Pulse / Analog |
| Voltage | 220V |
| Phase | Single/Three Phase |
| Rated Current | 12A |
| Communication Protocols | Modbus / CanOpen / EtherCAT |
| Encoder | 17/23bit Tamagawa absolute encoder; |
| Pulse Command Input | Pulse Type | Differential input,Open collector |
| Frequency Range | Differential input:0-500kHz,pulse width greater than 1us Open collector: 0-300kHz,pulse width greater than 2.5us |
|
| Pulse Mode | pulse + direction; AB pluses; CW+CCW; | |
| Analog Input | Voltage Range | -10V to 10V |
| Input Impedance | 10kΩ | |
| Maximum Frequency | 1.5kHz | |
| DI/DO Interface Type | NPN/PNP | |
| Communication | Modbus/CANopen/EtherCAT | |
Installation Precautions
| Installation Environment Requirements |
Atmospheric Pressure | 86~106kPa |
| Mbient Humidity | 0~55℃ | |
| Ambient Temperature | 0~90%RH | |
| IP Rating | IP20 | |
| Vibration | 0~4.9m/s^2 |
The panel contains 8 buttons and 5 digital tubes. Only 5 of the 8 buttons can be used, and the
remaining 3 buttons reserved. The general functions of the five buttons are shown in the table below.
| Key Name | Key function |
| PAR/ALM | mode switch, return to the previous menu |
| ▲(add) | increase flashing bit value of the LED digital tube |
| ▼(dec) | Decrease flashing digit value of the LED digital tube |
| STOP/RST | Moves the blinking LED tube to the left; checks the high value of data longer than 5 bits; Fault reset;execute Fn function |
| RD/WT | read/write parameter values;enter fn page |
Maintenance and inspection Precautions
● do not change the wiring while the power is on, otherwise it may cause electric shock or injury.
● please perform wiring or inspection by professional technicians, otherwise it
may cause electric shock or product failure.
● please check the power after the power is off for at least 5 minutes. Even if the power is turned off,
high voltage may remain inside the servo drive. Therefore, do not touch the power terminal within
5 minutes after the power is turned off, otherwise it may cause electric shock.
●when replacing the servo drive, please back up the servo driver user parameters to be replaced before
the replacement, and transfer the backup to the new servo drive, and then restart the operation,
otherwise the machine may be damaged.
Accessories:
| Accessory name | Image | ||
| Satandard Spare Parts | Power terminal | |
Adapt to E1,E2 structure drive |
| Cn3 encoder plug | Encoder plug on the driver side | ||
| Cn4 control terminal plug | Input/output signal terminals,user wiring | ||
| Encoder connection line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
| Power line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
| Drive monitoring line | Connect and adjust the software for remote monitoring and firmware update | ||
| Purchasing Spare Parts | USB to RS232 Adapter cable | If necessary, self purchase | |
| Ethernet communication line | If necessary, self purchase |
Certificates
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the
variable speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility
standards and its specific test methods), corresponding to the national standard GB12668.3-2012.
Quality Checking:
Four times Production testing
Two Times 24 hoursTesting
100% Inspection Before Shipping
Delivery Time and Shipping Way
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
| Packing details of Servo Drive | |||
| Products | E1(3-6A) | E2(7-12A) | E3(16-27A) |
| Ctn. Size | 280*208*78 | 280*208*112 | 375*290*155 |
