Closed Loop 3kw Servo Motion Control System Pulse For Printing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Vector |
| Certification: | CE |
| Model Number: | VEC-VC-01233HC-M-E/180MB-00315A33F-MF2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kit |
|---|---|
| Price: | USD 300-450 / kit |
| Packaging Details: | 280*208*78mm |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 kits/month |
|
Detail Information |
|||
| Voltage: | 380V | Power: | 3KW |
|---|---|---|---|
| Rated Current: | 7.5A | Rated Speed: | 1500 Rpm |
| Rated Torgue: | 19N.m | Phase: | 3 Phase |
| Motor Flange Size: | 180mm | Communication Protocols: | Modbus/CANopen/EtherCAT |
| Model: | VEC-VC-01233HC-M-E/180MB-00315A33F-MF2 | Application: | Printing Equipment |
| Highlight: | Closed Loop Servo Motion Control System,3kw Servo Motion Control System,Pulse Closed Loop Servo System |
||
Product Description

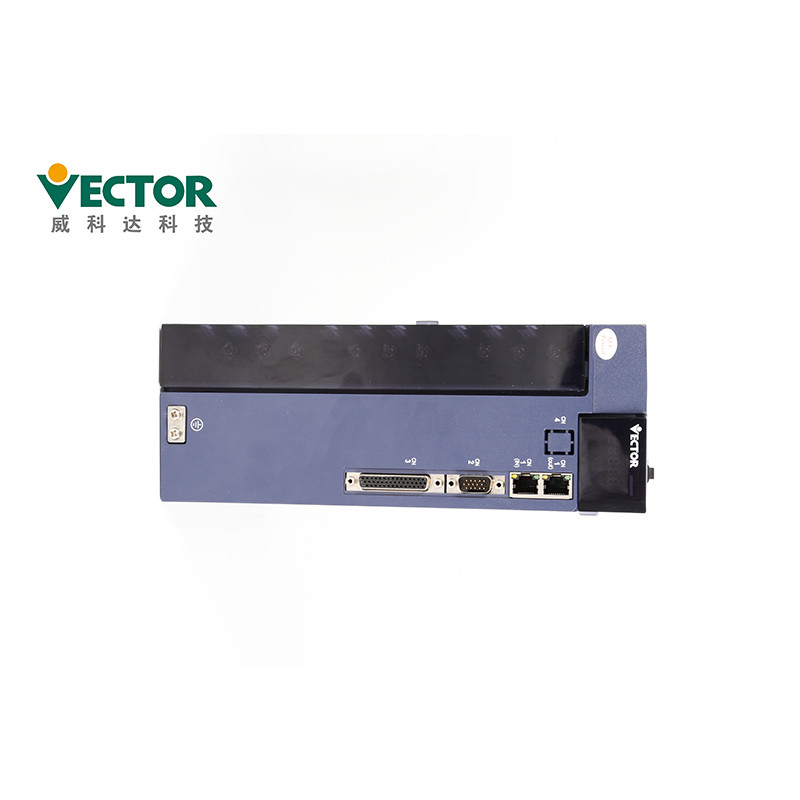

Less Error Closed-Loop Servo Drives 3kw 380V Pulse Servo Motor for Printing Equipment
Closed-Loop Servo Drives
AC Power 380V 3KW
Three phase with 17/23bit Tamagawa absolute encoder;
Modbus/CANopen/EtherCAT Commucation Protocol Type
Products Description
| Products | AC Servo Drive Controller For Cardboard Cap Feeder |
| Brand | Vector |
| Model No. | VEC-VC-01233HC-M-E/180MB-00315A33F-MF2 |
| Power | 3KW |
| Voltage | 380V |
| Phase | Three Phase |
| Rated Speed | 1500 rpm |
| Rated Current | 7.5A |
| Rated Torgue | 19N.m |
| Communication Protocols | Modbus/CANopen/EtherCAT |
| Key Name | Key function |
| Mode | mode switch, return to the previous menu |
| ▲(add) | increase flashing bit value of the LED digital tube |
| ▼(dec) | Decrease flashing digit value of the LED digital tube |
| ◄◄(shift) | Moves the blinking LED tube to the left; checks the high value of data longer than 5 bits; Fault reset;execute Fn function |
| SET | read/write parameter values |
Installation:
● Install the driver on a dry and sturdy platform. Maintain good ventilation and
heat dissipation during installation and maintain good grounding.
● Please install in the specified direction to avoid malfunction.
● When installing, please ensure that the servo driver is kept at a specified
distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.
| Installation Environment Requirements |
Atmospheric Pressure | 86~106kPa |
| Mbient Humidity | 0~55℃ | |
| Ambient Temperature | 0~90%RH | |
| IP Rating | IP20 | |
| Vibration | 0~4.9m/s^2 |
● When installing, do not block the suction and exhaust ports, and do not allow foreign objects inside the product
to enter, otherwise it may cause malfunction or fire due to aging of internal components.
● Do not place heavy objects on or under this product as this may result in injury.
● Please install in the following environment:
1.places without direct sunlight;
2.Locations where the ambient temperature is in the range of 0 ° C to 55 ° C;
3.Relative humidity in the range of 0% to 95%, and no condensation;
4.Locations free of water droplets, vapors, dust and oily dust;
5.Locations where there is no high heat device;
6.Non-corrosive, flammable gas and liquid sites;
7.It is not easy to splash water, oil and medicine;
8.places that are not exposed to radioactive radiation;
9.Strong and vibration-free places;
10.Locations where there is no electromagnetic noise interference.
Operating precautions
● in the test operation, in order to prevent accidents, please test the servo motor with no load
(not connected to the driver shaft), otherwise it may cause injury.
● when starting to operate on the supporting machine, set the user parameters that match the machine
in advance. If you start operation without parameter setting, it may cause mechanical loss or malfunction.
● to avoid accidents, install a limit switch or a stopper at the end of the movable part of the machine,
otherwise it will cause mechanical damage or injury.
● do not make extreme changes to the parameter settings, as this may result in
unstable operation, mechanical damage or injury.
●when the power is turned on or the power supply is cut off, the heat sink of the servo driver, external braking
resistor, motor, etc. may be in a high temperature state. Do not touch it, otherwise it may cause burns.
● when using a servo motor on the vertical axis, set a safety device to prevent the work piece from falling under
alarm, over travel, etc. In addition, please perform the servo lock stop setting when an over travel occurs,
otherwise the work piece may fall in the over travel condition.
● do not enter the operating range of the machine during operation, otherwise it will cause injury.
● do not touch the servo motor or the movable part of the machine during operation, otherwise it will cause injury.
● please set up the safety system to ensure safety even in the event of a signal line breakage. For example,
when the positive over travel switch (P-OT) and negative over travel switch (N-OT) signals are disconnected
at the factory setting, they operate safely.
● be sure to set the servo OFF state when turning off the power.
● do not turn the power on/off frequently. After the actual operation starts, the power ON/OFF interval should
be more than 1 hour, otherwise the components inside the servo unit will be prematurely aged.
●when an alarm occurs, reset the alarm after the cause is removed and ensure
safety, and restart the operation, otherwise it may cause injury.
● do not use the brake of the brake motor for normal braking, otherwise it may
cause a malfunction.
Accessories:
| Accessory name | Image | ||
| Satandard Spare Parts | Power terminal | |
Adapt to E1,E2 structure drive |
| Cn3 encoder plug | Encoder plug on the driver side | ||
| Cn4 control terminal plug | Input/output signal terminals,user wiring | ||
| Encoder connection line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
| Power line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
| Drive monitoring line | Connect and adjust the software for remote monitoring and firmware update | ||
| Purchasing Spare Parts | USB to RS232 Adapter cable | If necessary, self purchase | |
| Ethernet communication line | If necessary, self purchase |
Packing:
| Packing details of Servo Drive | |||||
| Products | E1(3-6A) | E2(7-12A) | E3(16-27A) | C015(32-38A) | C022(45-60A) |
| Ctn. Size | 280*208*78 | 280*208*112 | 375*290*155 | 440*296*288 | 510*305*325 |
| Packing details of Motion Controller | |||||
| Products | VA Motion | VA Expansion | VE Motion | VE Expansion(32) | VE Expansion(76) |
| Ctn. Size | 176*165*78 | 127*75*70 | 144*128*69 | 176*164*78 | 316*164*78 |
Delivery Time and Shipping Way
| Quantity | 1-5 kits | 50-100 kits | 200-500 kits |
| Delivery time | Within 3 days | 5-10 days | 15-25 days |
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
Cetificates:
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the
variable speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility
standards and its specific test methods), corresponding to the national standard GB12668.3-2012.
