Bus Type Modbus Closed Loop Servo System For Laminating Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Vector |
| Certification: | CE |
| Model Number: | VEC-VC-00323HC-M-E/60MB-R4030A23F-MF2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kit |
|---|---|
| Price: | To Be Discussed |
| Packaging Details: | 375*290*155mm, 280*208*112mm |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500-1000 kits /Month |
|
Detail Information |
|||
| Phase: | Three Phase | Voltage: | 220V |
|---|---|---|---|
| Model: | VEC-VC-00323HC-M-E/60MB-R4030A23F-MF2 | Usage: | Laminating Machine |
| Certifictaes: | CE | Encoder: | 17/23 Bit Absolute Encoder |
| Communication Protocols: | Modbus/CANopen/EtherCAT | Power: | 0.4KW |
| High Light: | 0.4kw Closed Loop Servo System,Modbus Closed Loop Servo System,Laminating Machine Closed Loop Servo System |
||
Product Description

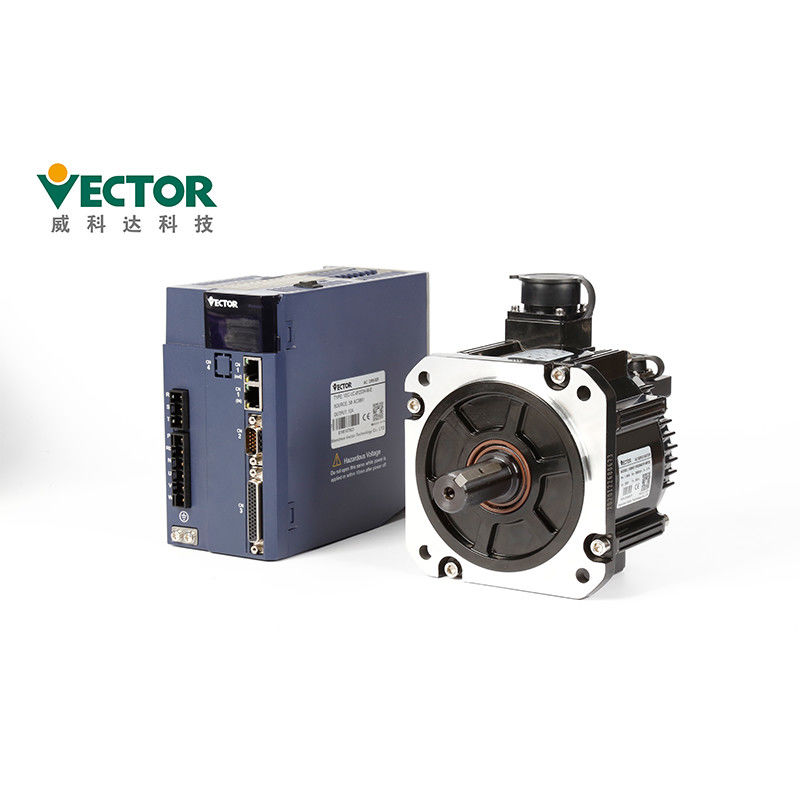

Universal Bus Closed-Loop Servo Drives 0.4kw 220V With CE For Laminating Machine
Universal Bus Closed-Loop Servo Drives
AC Power 0.4KW
Three Phase 220V
Modbus / CanOpen / EtherCAT
Location / Speed / Torque Control Mode
17/23bit Tamagawa absolute encoder;
Products Features
| Product Name | Closed Loop Servo Stepper Motor Drives |
| Brand | Vector |
| Model No. | VEC-VC-00323HC-M-E/60MB-R4030A23F-MF2 |
| Power4 | 0.4KW |
| Voltage | 2200V |
| Phase | Three Phase |
| Rated Current | 3A |
| Communication Protocols | Modbus/CANopen/EtherCAT |
| Encoder | 17/23 bit Tamagawa absolute encoder |
The panel contains 5 buttons and 5 digital tubes.
The general functions of the five buttons are shown in the table below.
| Key Name | Key function |
| Mode | mode switch, return to the previous menu |
| ▲(add) | increase flashing bit value of the LED digital tube |
| ▼(dec) | Decrease flashing digit value of the LED digital tube |
| ◄◄(shift) | Moves the blinking LED tube to the left; checks the high value of data longer than 5 bits; Fault reset;execute Fn function |
| SET | read/write parameter values |

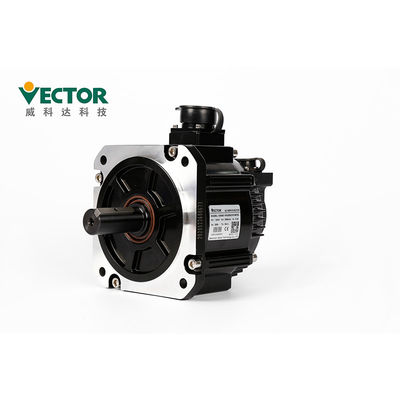

Servo Motor:
Installation:
● Install the driver on a dry and sturdy platform. Maintain good ventilation and
heat dissipation during installation and maintain good grounding.
● Please install in the specified direction to avoid malfunction.
● When installing, please ensure that the servo driver is kept at a specified
distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.
| Installation Environment Requirements |
Atmospheric Pressure | 86~106kPa |
| Mbient Humidity | 0~55℃ | |
| Ambient Temperature | 0~90%RH | |
| IP Rating | IP20 | |
| Vibration | 0~4.9m/s^2 |
Packing and Shipping
| Packing details of Servo Drive | |||||
| Products | E1(3-6A) | E2(7-12A) | E3(16-27A) | C015(32-38A) | C022(45-60A) |
| Ctn. Size | 280*208*78 | 280*208*112 | 375*290*155 | 440*296*288 | 510*305*325 |
| Packing details of Motion Controller | |||||
| Products | VA Motion | VA Expansion | VE Motion | VE Expansion(32) | VE Expansion(76) |
| Ctn. Size | 176*165*78 | 127*75*70 | 144*128*69 | 176*164*78 | 316*164*78 |
Delivery Time
| Quantity | 1-5 kits | 50-100 kits | 200-500 kits |
| Delivery time | Within 3 days | 5-10 days | 15-25 days |
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
Accessories
| Accessory name | Image | ||
| Satandard Spare Parts | Power terminal | |
Adapt to E1,E2 structure drive |
| Cn3 encoder plug | Encoder plug on the driver side | ||
| Cn4 control terminal plug | Input/output signal terminals,user wiring | ||
| Encoder connection line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
| Power line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
| Drive monitoring line | Connect and adjust the software for remote monitoring and firmware update | ||
| Purchasing Spare Parts | USB to RS232 Adapter cable | If necessary, self purchase | |
| Ethernet communication line | If necessary, self purchase |
