Product Details:

Place of Origin: China
Brand Name: Vector
Certification: CE
Model Number: VEC-VC-01233H-M-E/130ME-00320A33-MF2M

Payment & Shipping Terms:

Minimum Order Quantity: 1 kit
Price: USD 300-450 / kit
Packaging Details: 280*208*78mm
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 kits/month
Get Best Price Contact Now

Detail Information

Voltage: 380V Power: 3KW
Rated Current: 12A Rated Speed: 2000 Rpm
Rated Torgue: 14.3N.m Phase: 3 Phase
Motor Flange Size: 130mm Communication Protocols: Modbus/CANopen/EtherCAT
Model: VEC-VC-01233H-M-E/130ME-00320A33-MF2M Application: Metal Forming Machine
High Light:

380V AC Servo System

,

2000rpm AC Servo System

,

2000rpm Servo Control System

Product Description

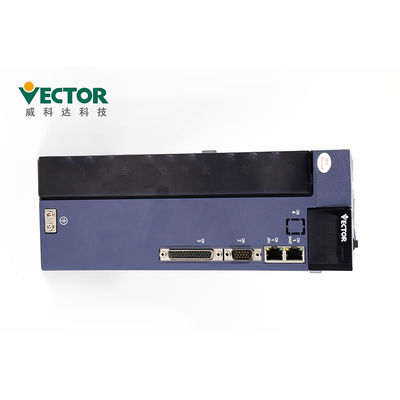

3kw 2000rpm AC Servo Motor Drive Absolute Servo System Kit for Metal Forming Machine



Absolute Servo System Kit

AC Power 380V 3KW

Three phase with 2500 pulse incremental + Hall encoder;

Modbus/CANopen/EtherCAT Commucation Protocol Type



Products Description



Products Absolute Servo System Kit
Brand Vector
Model No. VEC-VC-01233H-M-E/130ME-00320A33-MF2M
Power 3KW
Voltage 380V
Phase Three Phase
Rated Speed 2000 rpm
Rated Current 12A
Rated Torgue 14.3N.m
Communication Protocols Modbus/CANopen/EtherCAT



Voltage Control Mode Single-phase / three-phase full-controlled rectification
SVPWM modulation
Encoder Encoder Feedback 2500 pulse incremental + Hall encoder;
2500 pulse incremental;
17bit Tamagawa absolute encoder;
23bit Tamagawa absolute encoder;
24bit Nikon absolute encoder;
Pulse Command Input Pulse Type Differential input,Open collector
Frequency Range Differential input:0-500kHz,pulse width greater than 1us
Open collector: 0-300kHz,pulse width greater than 2.5us
Pulse Mode pulse + direction; AB pluses; CW+CCW;
Analog Input Voltage Range -10V to 10V
Input Impedance 10kΩ
Maximum Frequency 1.5kHz
DI/DO Interface Type NPN/PNP
Communication Protocol Type Modbus/CANopen/EtherCAT


Details about a Servo Drive, how to select the Servo drive model and do installation?



Vector 2000rpm AC Servo System For Metal Forming Machine 0



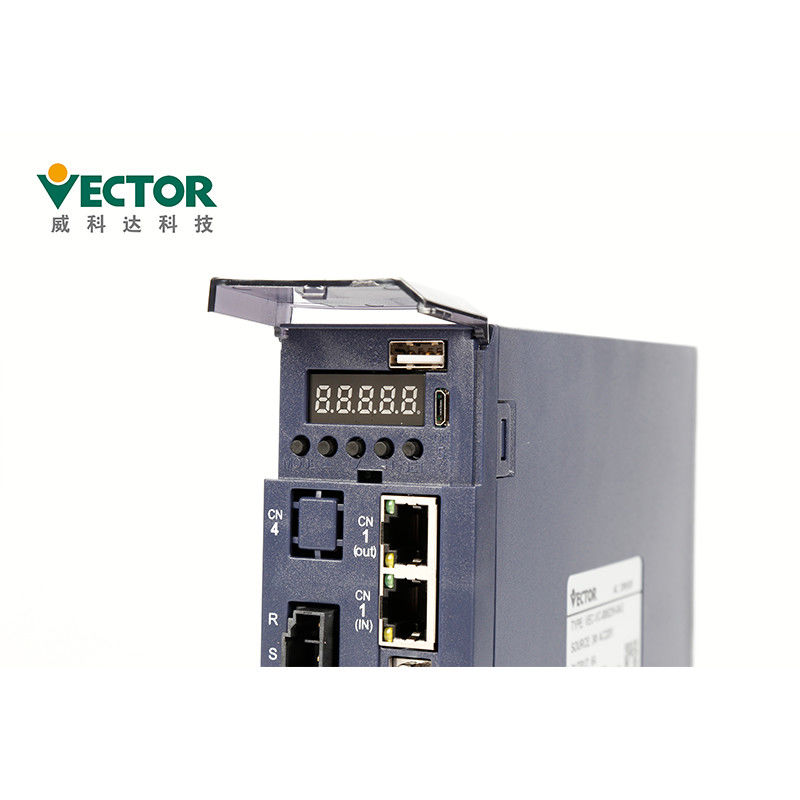

The panel contains 8 buttons and 5 digital tubes.

Only 5 of the 8 buttons can be used, and the remaining 3 buttons reserved.

The general functions of the five buttons are shown in the table below.



Key Name Key function
PAR/ALM mode switch, return to the previous menu
▲(add) increase flashing bit value of the LED digital tube
▼(dec) Decrease flashing digit value of the LED digital tube
STOP/RST Moves the blinking LED tube to the left; checks the high value of data
longer than 5 bits; Fault reset;execute Fn function
RD/WT read/write parameter values;enter fn page



Installation:

● Install the driver on a dry and sturdy platform. Maintain good ventilation and

heat dissipation during installation and maintain good grounding.

● Please install in the specified direction to avoid malfunction.

● When installing, please ensure that the servo driver is kept at a specified

distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.

Vector 2000rpm AC Servo System For Metal Forming Machine 1

Installation
Environment
Requirements
Atmospheric Pressure 86~106kPa
Mbient Humidity 0~55℃
Ambient Temperature 0~90%RH
IP Rating IP20
Vibration 0~4.9m/s^2



Accessories:



  Accessory name Image
Satandard Spare Parts Power terminal Vector 2000rpm AC Servo System For Metal Forming Machine 2 Adapt to E1,E2 structure drive
Cn3 encoder plug Encoder plug on the driver side
Cn4 control terminal plug Input/output signal terminals,user wiring
Encoder connection line The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer
needs Provide independent connector
Power line The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer
needs Provide independent connector
Drive monitoring line Connect and adjust the software for remote monitoring and firmware update
Purchasing Spare Parts USB to RS232 Adapter cable If necessary, self purchase
Ethernet communication line If necessary, self purchase



Packing:



Packing details of Servo Drive
Products E1(3-6A) E2(7-12A) E3(16-27A) C015(32-38A) C022(45-60A)
Ctn. Size 280*208*78 280*208*112 375*290*155 440*296*288 510*305*325
Packing details of Motion Controller
Products VA Motion VA Expansion VE Motion VE Expansion(32) VE Expansion(76)
Ctn. Size 176*165*78 127*75*70 144*128*69 176*164*78 316*164*78

Vector 2000rpm AC Servo System For Metal Forming Machine 3

Delivery Time and Shipping Way



Quantity 1-5 kits 50-100 kits 200-500 kits
Delivery time Within 3 days  5-10 days 15-25 days



1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.



Cetificates:

1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the

variable speed electric driver system), corresponding to the national standard GB12668.501-2013;

3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility

standards and its specific test methods), corresponding to the national standard GB12668.3-2012.

Vector 2000rpm AC Servo System For Metal Forming Machine 4



Want to Know more details about this product
I am interested in Vector 2000rpm AC Servo System For Metal Forming Machine could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
