Three Phase 220/380V 4 Axes Tension Control Servo System Used for Printing Machine



VEC-VCJ tension control servo has built-in multiple tension control modes: including closed loop speed mode,

closed loop torque mode, open loop speed mode, and open loop torque mode. Vikeda provides a full-servo

tension control solution, with VEC-VCJ tension control dedicated servo as the core, adopts different tension

control modes for different machines, and integrates the tension controller into the servo drive. TheTension

control system consists of a man-machine interface, a special servo for tension control, and a tension sensor.

It can realize the open loop tension control of rewinding and unwinding, the closed loop tension control of

rewinding and unwinding, and the process tension control. Achieve high precision, high stability,

maintenance-free and energy-saving effects.

Products Features

1.Stable start, no jitter at low speed;

2.Servo products are maintenance-free and have a service life of 6-10 years.

3. Calculate the winding diameter with the special algorithm of the servo, the system is simple, efficient and accurate;

4. During acceleration, deceleration or emergency stop,The tension is stable, and the tension accuracy is controlled Within 1%-5% of the sensor range;

5.The rewinding and unwinding diameter has a wide range, Basically unlimited;

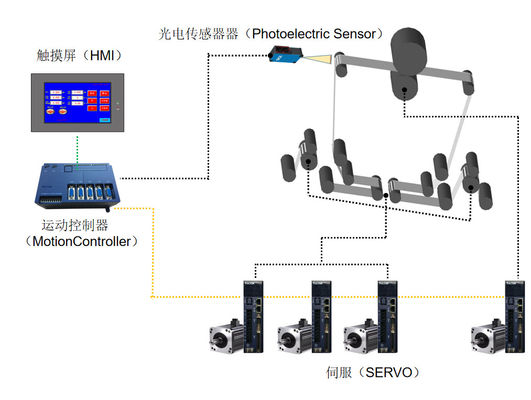

Servo System Solution

Three Phase 4 Axis Tension Control Servo System For Printing Machine 0

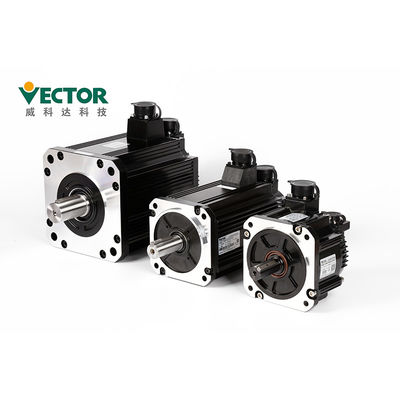

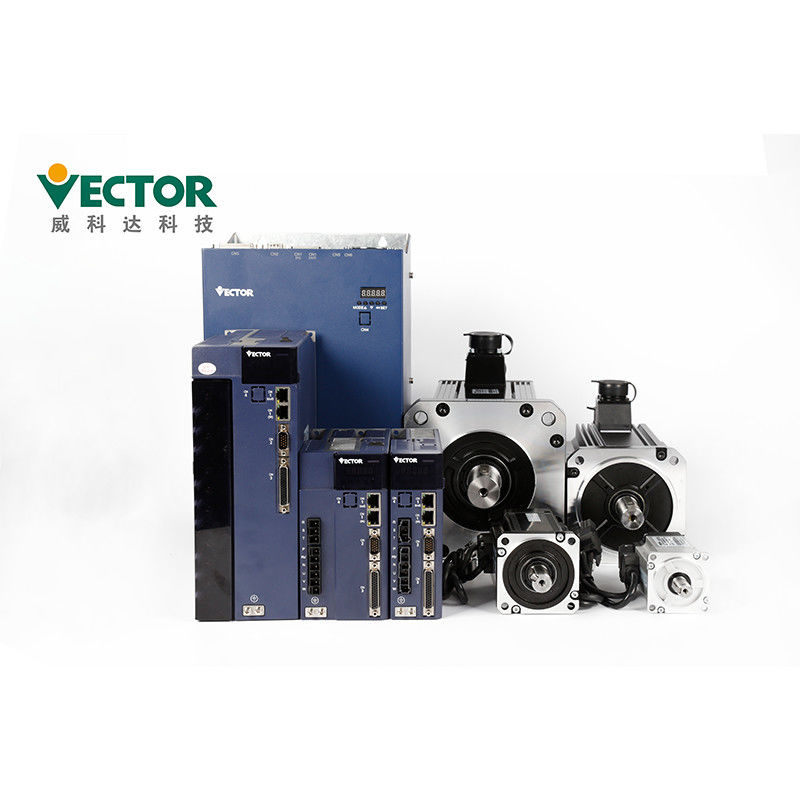

How to slect the Servo Drive+Servo Motor

Three Phase 4 Axis Tension Control Servo System For Printing Machine 1

Three Phase 4 Axis Tension Control Servo System For Printing Machine 2

Three Phase 4 Axis Tension Control Servo System For Printing Machine 3

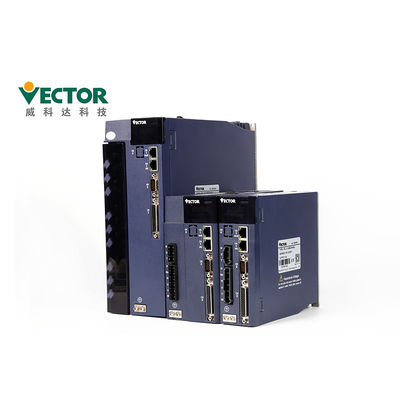

How to installation the servo Drive and connecting with Servo Motor?

Three Phase 4 Axis Tension Control Servo System For Printing Machine 4

Installation:



● Install the driver on a dry and sturdy platform. Maintain good ventilation and

heat dissipation during installation and maintain good grounding.

● Please install in the specified direction to avoid malfunction.

● When installing, please ensure that the servo driver is kept at a specified

distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.

Three Phase 4 Axis Tension Control Servo System For Printing Machine 5

Three Phase 4 Axis Tension Control Servo System For Printing Machine 6



● When installing, do not block the suction and exhaust ports, and do not allow foreign objects inside the

product to enter, otherwise it may cause malfunction or fire due to aging of internal components.

● Do not place heavy objects on or under this product as this may result in injury.

● Please install in the following environment:

1.places without direct sunlight;

2.Locations where the ambient temperature is in the range of 0 ° C to 55 ° C;

3.Relative humidity in the range of 0% to 95%, and no condensation;

4.Locations free of water droplets, vapors, dust and oily dust;

5.Locations where there is no high heat device;

6.Non-corrosive, flammable gas and liquid sites;

7.It is not easy to splash water, oil and medicine;

8.places that are not exposed to radioactive radiation;

9.Strong and vibration-free places;

10.Locations where there is no electromagnetic noise interference.

Installation
Environment
Requirements
Atmospheric Pressure 86~106kPa
Mbient Humidity 0~55℃
Ambient Temperature 0~90%RH
IP Rating IP20
Vibration 0~4.9m/s^2





Packing and Shipping



Packing details of Servo Drive
Products E1(3-6A) E2(7-12A) E3(16-27A) C015(32-38A) C022(45-60A)
Ctn. Size 280*208*78 280*208*112 375*290*155 440*296*288 510*305*325
Packing details of Motion Controller
Products VA Motion VA Expansion VE Motion VE Expansion(32) VE Expansion(76)
Ctn. Size 176*165*78 127*75*70 144*128*69 176*164*78 316*164*78

Three Phase 4 Axis Tension Control Servo System For Printing Machine 7



Delivery Time

Quantity 1-5 kits 50-100 kits 200-500 kits
Delivery time Within 3 days 5-10 days 15-25 days



1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.



Accessories



  Accessory name Image
Satandard Spare Parts Power terminal Three Phase 4 Axis Tension Control Servo System For Printing Machine 8 Adapt to E1,E2 structure drive
Cn3 encoder plug Encoder plug on the driver side
Cn4 control terminal plug Input/output signal terminals,user wiring
Encoder connection line The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer
needs Provide independent connector
Power line The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer
needs Provide independent connector
Drive monitoring line Connect and adjust the software for remote monitoring and firmware update
Purchasing Spare Parts USB to RS232 Adapter cable If necessary, self purchase
Ethernet communication line If necessary, self purchase
