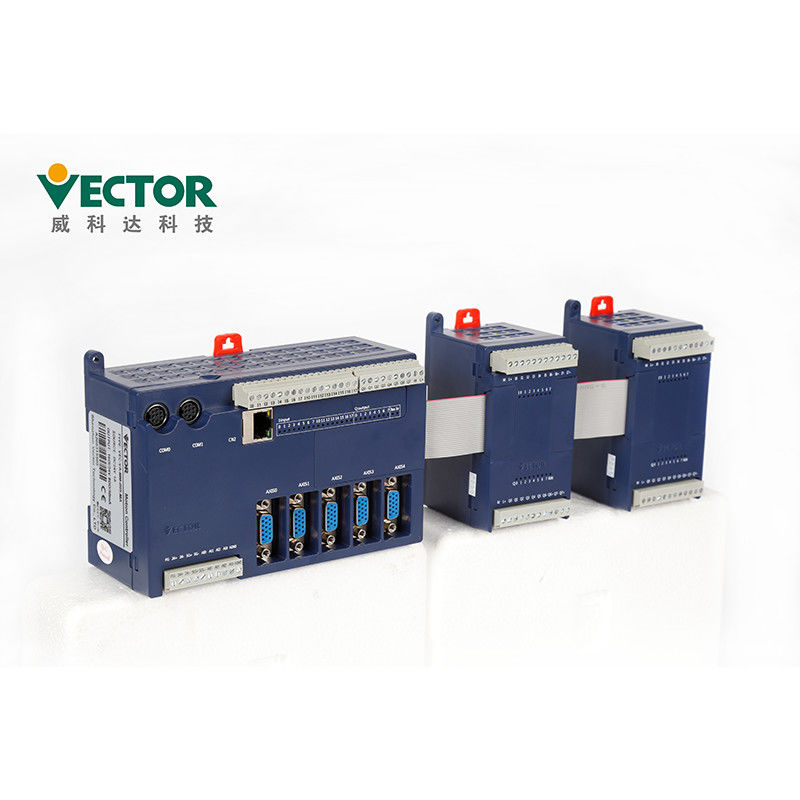

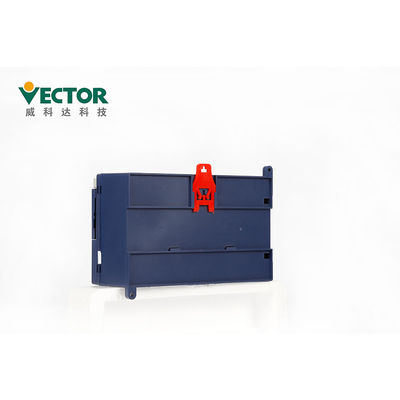

IEC61131-3 Standard 5 Axis Motion Controller Device CanOpen Master Station

IEC61131-3 Standard 5 Axis Motion Controller Device CanOpen Master Station

Product Details:

Place of Origin: China
Brand Name: Vector
Certification: CE
Model Number: VEC-VA-MP-003-MA

Payment & Shipping Terms:

Minimum Order Quantity: 1 kit
Price: To Be Discussed
Packaging Details: 176*165*78mm
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500-1000 kits /Month
Get Best Price Contact Now

Detail Information

Programming Tool: MULTIPROG Programming Tool Language: IEC61131-3 Standard 5 Languages
Axis: 5 Axis Certifictaes: CE & ROHS
Control Modesion: CanOpen/Analog/Pulse I/O: 16 DI + 8 DO
Expansion Units: IO Expansion, Digital, Analog, PT100 Thermocouple, Weight Application: Cutting Machine
High Light:

IEC61131-3 Motion Controller Device

,

Vector 5 Axis Motion Controller Device

,

IEC61131-3 5 Axis Controller

Product Description

IEC61131-3 Standard CanOpen Master Station 5 Axis Motion Controller For Cutting Machine



The VA series motion controller uses the MULTIPROG programming tool and supports 5 programming

languages of the IEC61131-3 international standard, making it easy for application programmers to get

started. This motion controller supports three kinds of interfaces: pulse,analog and CanOpen for motion

control. This product is actually the leader in non-bus motion controller products.

Products Features

Products 5 Axis Motion Controller For Cutting Machine
Brand Vector
Model No. VEC-VA-MP-003-MA
Axis 3 Axis
Progarmming Tool MULTIPROG
Programming Language IEC61131-3
Expansion Units IO Expansion, Digital, Analog, PT100 Thermocouple, Weight
Communication Protocols CAnopen/Pulse/Analog



IEC61131-3 Standard 5 Axis Motion Controller Device CanOpen Master Station 0



Performace:



Signal processing capability - ARM's powerful computing capability, FPGA's excellent high-speed signal

processing capability; Operation Speed - Operation cycle of 6 axis only takes 500 microseconds.



Powerful Motion Control Functions



1. Motion control function block conforms to PLCOPEN2.0,Also supports CNC function blocks

2. Support Jerk function, set the rate of change of acceleration/deceleration; Support Buffer Mode function,

    softer motion curve.

3. Provide special function blocks for some industries, optimize solutions, and make the application more

    convenient and efficient:

Vector focuses on providing overall solutions for customers. We have customized special modules for

customers for the industry, such as: special modules for post-press equipment, special modules for leading

edge paper feeding, cutting modules, and Absolute motion module for heavy inertia load and so on. The use

of dedicated modules makes the application of motion controllers easier and more efficient.



Programming Language:



MULTIPROG supports IL, ST , FBD, LD, SFC five programming languages, of which IL and S T belong to the

text programming language, FBD, LDAnd SFC belong to the graphic programming language. A program with

independent functions is divided into code part and data part. The code is written in one or several languages

​​of IL, ST , FBD, LD, SFC , and the data is declared in the variable work order. This chapter describes how to

declare variables and how to program them in these five programming languages:



〖1 〗IL is an abbreviation of the Instruction List ;

〖2 〗ST is an abbreviation of Structured Text structured text;

〖3 〗FBD is an abbreviation of Function Block Diagram function chart;

〖4 〗LD is an abbreviation of Ladder Diagram ladder diagram;

〖5 〗SFC is SequentialFunction Chart is an abbreviation of sequential function chart;



In a graphics-like programming language, programs are scanned from top to bottom and left to right. In a

text-based programming language, programs are scanned from top to bottom.



MULTIPROG programming interface presentation

After opening MULTIPROG, you caNSee that it has only one main boundary. According to the function,

it is divided into different areas, as shown.

IEC61131-3 Standard 5 Axis Motion Controller Device CanOpen Master Station 1

a. Clear programming structure,standard programming language

b. Support cross-compilation between FBD, LD and IL, and support mixed programming

c. Supports IEC61131-3 programming languages: FBD, LD, IL, ST and SFC



Programming model with standard IEC61131-3

1) The MULTIPROG programming software used by the VA motion controller has a programming language

and program structure in accordance with the IEC 61131-3 programming system. In IEC 61131-3, the

establishment of programs and projects is done in the Program Organization Unit (POU). The unit POU consists

of three parts: PROGRAM, FUNCTIONBLOCK and FUNCTION. It replaces the five functional blocks OB, PB, DB,

SB and FB of the traditional PLC programming language. More efficient and more concise as shown.

IEC61131-3 Standard 5 Axis Motion Controller Device CanOpen Master Station 2

2) IEC 61131-3 programming software model is represented by a hierarchical structure, as shown below, the software

model describes the relationship between the various parts, including the configuration, resource, task, program

organization unit, global variables, I / O configuration, etc. . Programming process can program a complex program,

or divided into a number of small modules can also be simultaneously downloaDA plurality of separate programs, running,

or the program into a plurality of tasks to perform, improve the modularity and operational procedures efficiency as shown.

IEC61131-3 Standard 5 Axis Motion Controller Device CanOpen Master Station 3



Expansion Units

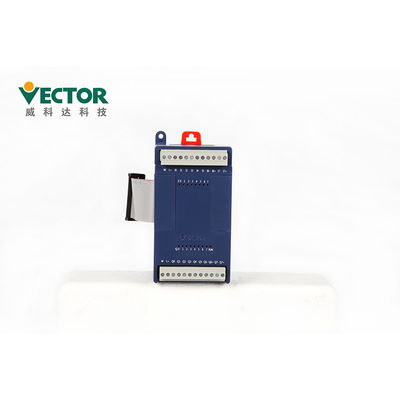

The host IO expansion module of Vikeda motion controller mainly has 8IO, 16I and 16O. 8IO means that the

expansion module has 8 digital input ports and 8 digital output ports (transistor type output); 16I means that

the expansion module has 8 digital input ports and 8 digital output ports (transistor output). 16 DI ports; 16O

means that the expansion module has 16 DO ports (transistor output); among them, DI and DO can be selected

through jumpers on the motion controller host to select NPN and PNP types



IEC61131-3 Standard 5 Axis Motion Controller Device CanOpen Master Station 4

The temperature of the environment where this product is used is -10°C to +40°C. For long-term work,

it is recommended that the ambient temperature be below +40°C. If the ambient temperature exceeds

+40°C, please place it in a well-ventilated place to ensure product reliability. If this product is installed in

a distribution box, the size and ventilation conditions of the distribution box must be such that all internal

electronic devices are not exposed to the danger of overheating, and attention should be paid to whether

the vibration of the machine will affect the electronic devices of the distribution box. In addition, the

conditions of use include the following:

⑴ Places without high-heating devices;
⑵ Places free of water droplets, steam, dust and oily dust;
⑶ Places where there is no corrosive, flammable gas or liquid;
⑷ Places without floating dust and metal particles;
⑸ A firm and vibration-free place;
⑹ A place without electromagnetic noise interference.

IEC61131-3 Standard 5 Axis Motion Controller Device CanOpen Master Station 5IEC61131-3 Standard 5 Axis Motion Controller Device CanOpen Master Station 6



Different Expansion units and Functions



Model Function
VEC-VA-EX-8IO 8-channel digital input, 8-channel digital output module; output type is transistor output
VEC-VA-EX-16I 16 digital input module
VEC-VA-EX-16O 16 digital output modules; output type is transistor output
VEC-VA-EX-4XA-B 4 channels of AD input, 4 channels of DA output module; resolution is 12bit, AD input can be configured to 0~5V, 0~10V, ±10V and 0~20mA through software, DA output can be configured to 0~5V, 0~10V, ±10V
VEC-VA-EX-4PT-B 4-way three-wire PT100 input module; temperature range -200~+600℃, 1mA constant current source drive, 0.1℃ measurement accuracy
VEC-VA-EX-4TC-B 4-channel thermocouple input module; supports up to 8 types of thermocouples, broken couple detection, 0.1℃ measurement accuracy
VEC-VA-EX-2WT-B 2-channel weighing module; multiple feature values are optional, 24bit high-resolution sampling



IEC61131-3 Standard 5 Axis Motion Controller Device CanOpen Master Station 7

Packing and Shipping

Packing details of Motion Controller
Products VA Motion VA Expansion VE Motion VE Expansion(32) VE Expansion(76)
Ctn. Size 176*165*78 127*75*70 144*128*69 176*164*78 316*164*78

IEC61131-3 Standard 5 Axis Motion Controller Device CanOpen Master Station 8



Delivery Time

Quantity 1-5 kits 50-100 kits 200-500 kits
Delivery time Within 3 days 5-10 days 15-25 days



1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.



CE & ROHS Certificates

IEC61131-3 Standard 5 Axis Motion Controller Device CanOpen Master Station 9
