Voltage: 380V Power: 3KW
Rated Current: 7.5A Rated Speed: 1500 Rpm
Rated Torgue: 19N.m Phase: 3 Phase
Motor Flange Size: 180mm Communication Protocols: Modbus/CANopen/EtherCAT
Model: VEC-VC-01233HC-M-E/180MB-00315A33F-MF2 Application: Printing Equipment
High Light:

Closed Loop Servo Motion Control System

,

3kw Servo Motion Control System

,

Pulse Closed Loop Servo System

Product Description

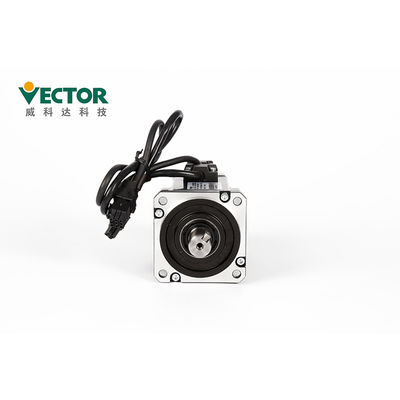

Less Error Closed-Loop Servo Drives 3kw 380V Pulse Servo Motor for Printing Equipment



Closed-Loop Servo Drives

AC Power 380V 3KW

Three phase with 17/23bit Tamagawa absolute encoder;

Modbus/CANopen/EtherCAT Commucation Protocol Type



Products Description

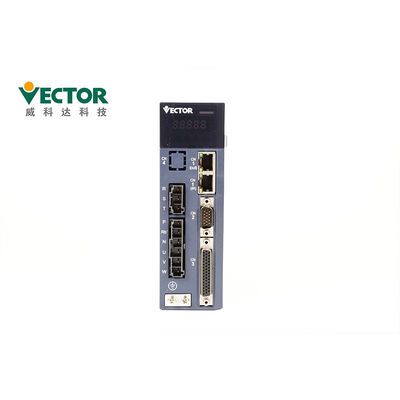

Products AC Servo Drive Controller For Cardboard Cap Feeder
Brand Vector
Model No. VEC-VC-01233HC-M-E/180MB-00315A33F-MF2
Power 3KW
Voltage 380V
Phase Three Phase
Rated Speed 1500 rpm
Rated Current 7.5A
Rated Torgue 19N.m
Communication Protocols Modbus/CANopen/EtherCAT



Closed Loop 3kw Servo Motion Control System Pulse For Printing Equipment 0

Key Name Key function
Mode mode switch, return to the previous menu
▲(add) increase flashing bit value of the LED digital tube
▼(dec) Decrease flashing digit value of the LED digital tube
◄◄(shift) Moves the blinking LED tube to the left; checks the high value of data
longer than 5 bits; Fault reset;execute Fn function
SET read/write parameter values



Closed Loop 3kw Servo Motion Control System Pulse For Printing Equipment 1


Installation:

● Install the driver on a dry and sturdy platform. Maintain good ventilation and

heat dissipation during installation and maintain good grounding.

● Please install in the specified direction to avoid malfunction.

● When installing, please ensure that the servo driver is kept at a specified

distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.

Closed Loop 3kw Servo Motion Control System Pulse For Printing Equipment 2



Installation
Environment
Requirements
Atmospheric Pressure 86~106kPa
Mbient Humidity 0~55℃
Ambient Temperature 0~90%RH
IP Rating IP20
Vibration 0~4.9m/s^2



● When installing, do not block the suction and exhaust ports, and do not allow foreign objects inside the product

to enter, otherwise it may cause malfunction or fire due to aging of internal components.

● Do not place heavy objects on or under this product as this may result in injury.

● Please install in the following environment:

1.places without direct sunlight;

2.Locations where the ambient temperature is in the range of 0 ° C to 55 ° C;

3.Relative humidity in the range of 0% to 95%, and no condensation;

4.Locations free of water droplets, vapors, dust and oily dust;

5.Locations where there is no high heat device;

6.Non-corrosive, flammable gas and liquid sites;

7.It is not easy to splash water, oil and medicine;

8.places that are not exposed to radioactive radiation;

9.Strong and vibration-free places;

10.Locations where there is no electromagnetic noise interference.



Operating precautions

● in the test operation, in order to prevent accidents, please test the servo motor with no load

(not connected to the driver shaft), otherwise it may cause injury.

● when starting to operate on the supporting machine, set the user parameters that match the machine

in advance. If you start operation without parameter setting, it may cause mechanical loss or malfunction.

● to avoid accidents, install a limit switch or a stopper at the end of the movable part of the machine,

otherwise it will cause mechanical damage or injury.

● do not make extreme changes to the parameter settings, as this may result in

unstable operation, mechanical damage or injury.

●when the power is turned on or the power supply is cut off, the heat sink of the servo driver, external braking

resistor, motor, etc. may be in a high temperature state. Do not touch it, otherwise it may cause burns.

● when using a servo motor on the vertical axis, set a safety device to prevent the work piece from falling under

alarm, over travel, etc. In addition, please perform the servo lock stop setting when an over travel occurs,

otherwise the work piece may fall in the over travel condition.

● do not enter the operating range of the machine during operation, otherwise it will cause injury.

● do not touch the servo motor or the movable part of the machine during operation, otherwise it will cause injury.

● please set up the safety system to ensure safety even in the event of a signal line breakage. For example,

when the positive over travel switch (P-OT) and negative over travel switch (N-OT) signals are disconnected

at the factory setting, they operate safely.

● be sure to set the servo OFF state when turning off the power.

● do not turn the power on/off frequently. After the actual operation starts, the power ON/OFF interval should

be more than 1 hour, otherwise the components inside the servo unit will be prematurely aged.

●when an alarm occurs, reset the alarm after the cause is removed and ensure

safety, and restart the operation, otherwise it may cause injury.

● do not use the brake of the brake motor for normal braking, otherwise it may

cause a malfunction.

Closed Loop 3kw Servo Motion Control System Pulse For Printing Equipment 3



Accessories:



  Accessory name Image
Satandard Spare Parts Power terminal Closed Loop 3kw Servo Motion Control System Pulse For Printing Equipment 4 Adapt to E1,E2 structure drive
Cn3 encoder plug Encoder plug on the driver side
Cn4 control terminal plug Input/output signal terminals,user wiring
Encoder connection line The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer
needs Provide independent connector
Power line The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer
needs Provide independent connector
Drive monitoring line Connect and adjust the software for remote monitoring and firmware update
Purchasing Spare Parts USB to RS232 Adapter cable If necessary, self purchase
Ethernet communication line If necessary, self purchase



Packing:



Packing details of Servo Drive
Products E1(3-6A) E2(7-12A) E3(16-27A) C015(32-38A) C022(45-60A)
Ctn. Size 280*208*78 280*208*112 375*290*155 440*296*288 510*305*325
Packing details of Motion Controller
Products VA Motion VA Expansion VE Motion VE Expansion(32) VE Expansion(76)
Ctn. Size 176*165*78 127*75*70 144*128*69 176*164*78 316*164*78

Closed Loop 3kw Servo Motion Control System Pulse For Printing Equipment 5

Delivery Time and Shipping Way



Quantity 1-5 kits 50-100 kits 200-500 kits
Delivery time Within 3 days  5-10 days 15-25 days



1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.



Cetificates:

1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the

variable speed electric driver system), corresponding to the national standard GB12668.501-2013;

3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility

standards and its specific test methods), corresponding to the national standard GB12668.3-2012.

Closed Loop 3kw Servo Motion Control System Pulse For Printing Equipment 6



Our Team

Closed Loop 3kw Servo Motion Control System Pulse For Printing Equipment 7



Want to Know more details about this product
