1.3kw 2500rpm Servo Motion Control System For Injection Molding Machine

1.3kw 2500rpm Servo Motion Control System For Injection Molding Machine

Product Details:

Place of Origin: China
Brand Name: Vector
Certification: CE
Model Number: VEC-VC-00733HC-M-E / 130MB-1R325A33F-MF2

Payment & Shipping Terms:

Minimum Order Quantity: 1 kit
Price: USD 300-450 / kit
Packaging Details: 280*208*78mm
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 kits/month
Get Best Price Contact Now

Detail Information

Voltage: 380V Power: 1.3KW
Rated Current: 3A Rated Speed: 2500 Rpm
Rated Torgue: 5 N.m Phase: 3 Phase
Motor Flange Size: 130mm Communication Protocols: Modbus/CANopen/EtherCAT
High Light:

1.3kw Servo Motion Control System

,

2500rpm Servo Motion Control System

,

1.3kw Servo Motor System

Product Description

380V 1.3KW Servo system motion control solution for injection molding machine



Vector Tech. Focus on Servo system for more than 17 years. Focusing on industrial automation products

with independent intellectual property rights, we are positioned to serve high end equipment manufacturers

and provide overall solutions for customers in market segments. To become the world's leading provider of

industrial automation products and solutions. Independently developed products include servo drive, motion

controller, human-machine interface, servo motor, etc., with a number of invention patents, utility model patents

and software registration rights, is a national high-tech enterprise. Has its own product research and development

center and production base, in the country has a number of offices and agents. Our core competitiveness is to

achieve seamless integration of product R&D and product application, and provide professional and efficient system

solutions for equipment.Vector will continue to adhere to the business philosophy of “creating value for customers

wholeheartedly”make deep efforts in the field of industrial automation, and create the beauty of motion control is our

unremitting pursuit, determined to build a national brand with leading technology, efficient management, leading

domestic and internationally renowned.



Products Description

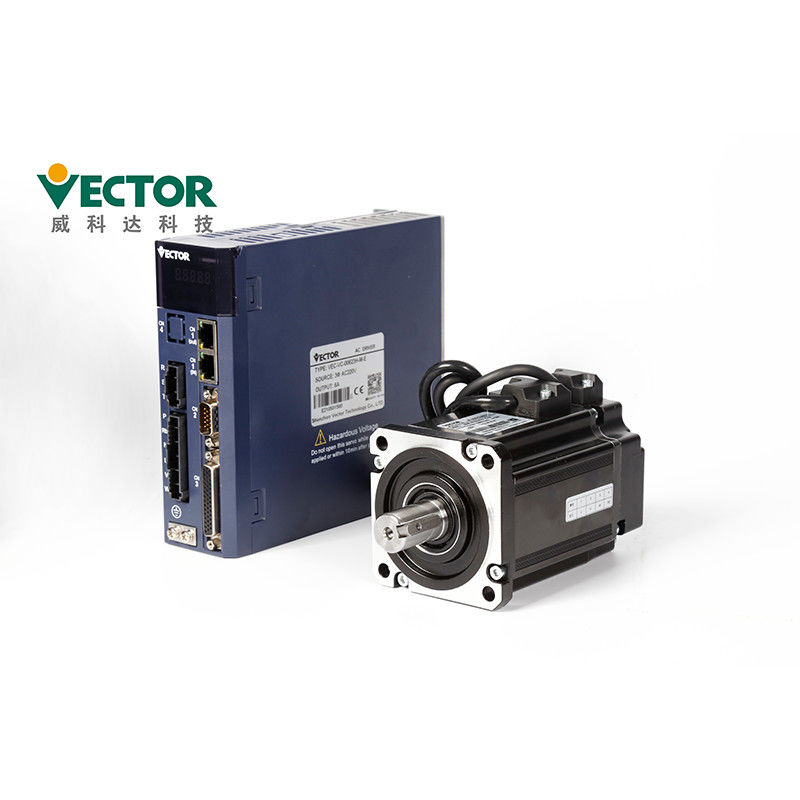

Products Servo System(Servo Drive + Servo Motor)
Brand Vector
Model No. Servo Drive:VEC-VC-00733HC-M-E /130MB-1R325A33F-MF2
Power 1.3KW
Voltage 380V
Phase Three Phase
Rated Speed 2500 rpm
Rated Current 3A
Rated Torgue 5 N.m
Communication Protocols Modbus/CANopen/EtherCAT



How is the Servo System works? The Location control model, Speed control model and Trogue control model.



1.3kw 2500rpm Servo Motion Control System For Injection Molding Machine 0

Servo Drive Description- Details about a Servo Drive, how to select the Servo drive model and do installation?

1.3kw 2500rpm Servo Motion Control System For Injection Molding Machine 1

● Install the driver on a dry and sturdy platform. Maintain good ventilation and

heat dissipation during installation and maintain good grounding.

● Please install in the specified direction to avoid malfunction.

● When installing, please ensure that the servo driver is kept at a specified

distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.

1.3kw 2500rpm Servo Motion Control System For Injection Molding Machine 2



● When installing, do not block the suction and exhaust ports, and do not allow foreign objects inside the

product to enter, otherwise it may cause malfunction or fire due to aging of internal components.

● Do not place heavy objects on or under this product as this may result in injury.

● Please install in the following environment:

1.places without direct sunlight;

2.Locations where the ambient temperature is in the range of 0 ° C to 55 ° C;

3.Relative humidity in the range of 0% to 95%, and no condensation;

4.Locations free of water droplets, vapors, dust and oily dust;

5.Locations where there is no high heat device;

6.Non-corrosive, flammable gas and liquid sites;

7.It is not easy to splash water, oil and medicine;

8.places that are not exposed to radioactive radiation;

9.Strong and vibration-free places;

10.Locations where there is no electromagnetic noise interference.

Installation
Environment
Requirements
Atmospheric Pressure 86~106kPa
Mbient Humidity 0~55℃
Ambient Temperature 0~90%RH
IP Rating IP20
Vibration 0~4.9m/s^2

1.3kw 2500rpm Servo Motion Control System For Injection Molding Machine 3

1.3kw 2500rpm Servo Motion Control System For Injection Molding Machine 4

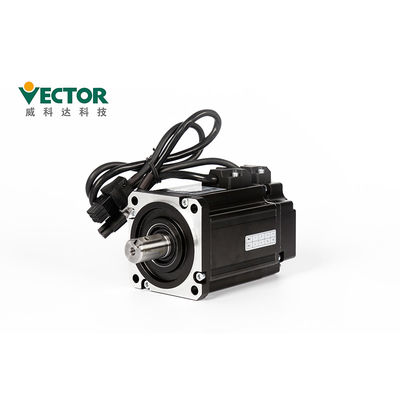

Servo motor description - How to select the servo motor

1.3kw 2500rpm Servo Motion Control System For Injection Molding Machine 5

1.3kw 2500rpm Servo Motion Control System For Injection Molding Machine 6

Delivery Time and Shipping Way



Quantity 1-5 kits 50-100 kits 200-500 kits
Delivery time Within 3 days  5-10 days 15-25 days



1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.
