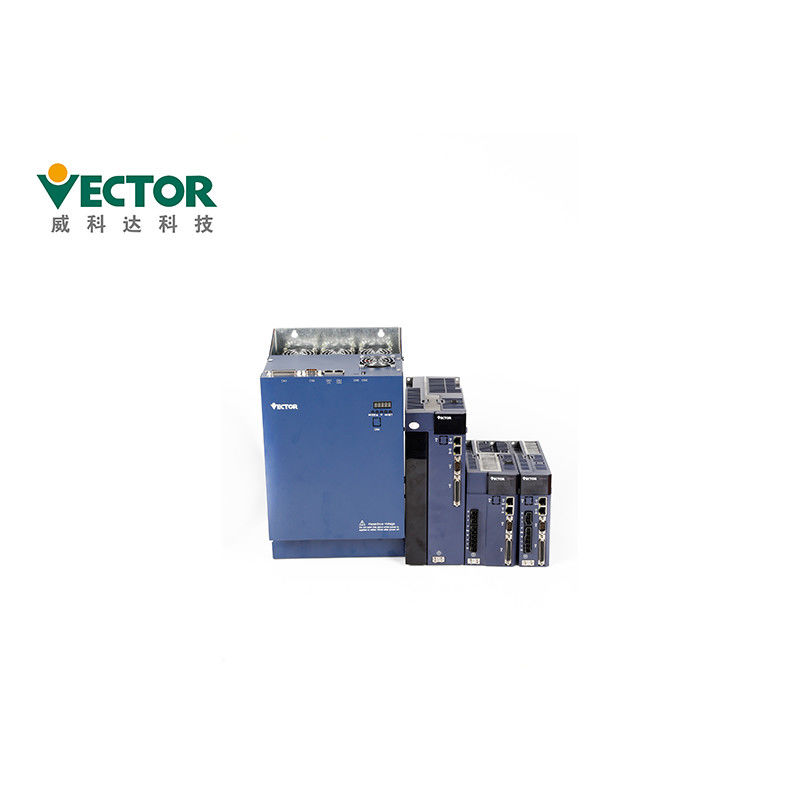

Single Phase 750 Watt Multi Axis Servo Drive With 3M 5M Cable

Single Phase 750 Watt Multi Axis Servo Drive With 3M 5M Cable

Product Details:

Place of Origin: China
Brand Name: Vector
Certification: CE
Model Number: VEC-VC-06033H-M-EA

Payment & Shipping Terms:

Minimum Order Quantity: 1 kit
Price: To Be Discussed
Packaging Details: 280*208*78mm,375*290*155mm
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 kits/month
Get Best Price Contact Now

Detail Information

Voltage: 220V Power: 0.75KW
Phase: Single Phase Communication Protocols: CanOpen/EtherCAT/ CanOpen
Encoder: 17 23 / 24bit Tamagawa Absolute Encoder; Rated Current: 6A
Input/Output: Pulse/Analog Control Mode: Position / Speed / Torque
Application: Food Packing Machine Product Name: 220V 750 Watt Servo Drive
High Light:

750 Watt Multi Axis Servo Drive

,

Single Phase Multi Axis Servo Drive

Product Description

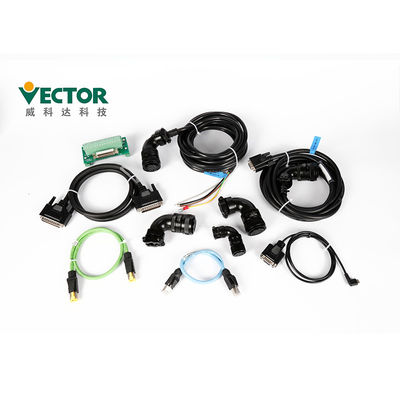

220V 750 Watt Servo Drive Single Phase Servo Motor With 3M / 5M Cable

Products Description

Product Name 220V 750 Watt Servo Drive
Brand Vector
Model No. VEC-VC1-00623M-M-E
Power 0.75KW
Input/Output Pulse/Analog
Voltage 220V
Phase Single Phase
Rated Current 6A
Communication Protocols CanOpen / EtherCAT / Modbus
Encoder 17 / 23 / 24 bit absolute encoder;



Single Phase 750 Watt Multi Axis Servo Drive With 3M 5M Cable 0


Single Phase 750 Watt Multi Axis Servo Drive With 3M 5M Cable 1


Wiring precautions

● It is recommended not to use single-phase 220V for main power supply,

which may cause damage to electrolytic capacitor due to lack of phase.

● Do not change the wiring during power-on, otherwise it may cause electric

shock or injury.

● Please perform wiring or inspection by professional technicians, otherwise it

may cause electric shock or product failure.

● Please carefully confirm the wiring and power supply. The output circuit

may be short-circuited due to wiring errors or application of different voltages.

The brake does not operate when the above fault occurs, which may result in mechanical damage or personal injury.

● Do not connect the input power cable to the U, V, and W terminals of the

drive. Otherwise, the servo driver will be damaged.

● When wiring, do not pass the power cable and signal cable through the same

pipe, and do not bundle them together. The distance between the two should be more than 30cm to avoid interference.

● The driver ground terminal must be grounded to avoid leakage and reduce

the interference of the system, and the diameter of the ground wire should be the same as or above the power supply line.

● When connecting the AC power supply and DC power supply to the servo unit, connect to the specified terminal.

Failure to do so may result in malfunction or fire.

● For the wiring length, the command input line is up to 3m and the encoder

line is up to 20m.

● Use a twisted-pair shielded cable for the signal cable and encoder cable, and

ground the shield with a single end.

●The U, V, W terminals of the driver and the U, V, and W terminals of the

motor should be connected one by one according to the name. If it is wrong connected, the motor cannot operate normally.

● Common DC bus products require pressure sensitive resistors and the wiring

is secure.

● Please check the power after the power is off for at least 5 minutes. Even if

the power is turned off, high voltage may remain inside the servo drive. Therefore, do not touch the power terminal within

5 minutes after the power is turned off, otherwise it may cause electric shock.

● Do not turn the power ON/OFF frequently. When it is necessary to

continuously turn ON/OFF the power, please control it once or less in 1 minute. Since the power supply section of the

servo driver has a capacitor, a large charging current (charge time of 0.2 seconds) flows during the ON/OFF power supply.

Therefore, if the power is turned ON/OFF frequently, the performance of the main circuit components inside the servo driver

will be degraded.

● Do not apply power when the terminal block screws are loose or the cable is

loose. Otherwise, it may cause fire.

● Take appropriate shielding measures in the following locations, otherwise

the machine may be damaged:

1. Locations that cause interference due to static electricity;

2. A place that produces a strong electric field or a strong magnetic field;

3. Locations where there may be radiation radiation;

4. A place with a power cord nearby.



Installation
Environment
Requirements
Atmospheric Pressure 86~106kPa
Mbient Humidity 0~55℃
Ambient Temperature 0~90%RH
IP Rating IP20
Vibration 0~4.9m/s^2


Maintenance and inspection Precautions
● do not change the wiring while the power is on, otherwise it may cause electric shock or injury.
● please perform wiring or inspection by professional technicians, otherwise it
may cause electric shock or product failure.
● please check the power after the power is off for at least 5 minutes. Even if the power is turned off,
high voltage may remain inside the servo drive. Therefore, do not touch the power terminal within 5 minutes
after the power is turned off, otherwise it may cause electric shock.
●when replacing the servo drive, please back up the servo driver user parameters to be replaced before the
replacement, and transfer the backup to the new servo drive, and then restart the operation, otherwise the
machine may be damaged.


Other Questions:
Q1. How to select the suitable model?
A: Please confirm your requirements for Rated Power, Current, Voltage,
Torque and select the suitable model based our model list;
Q2. How to set the programming system?
A: Our Servo drive support the Global Communication protocols: Modbus/CANopen/EtherCAT,
Please Just make the programming follow your experiences;

Certificates
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the
variable speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility
standards and its specific test methods), corresponding to the national standard GB12668.3-2012.

Quality Checking:
Four times Production testing
Two Times 24 hoursTesting
100% Inspection Before Shipping

Single Phase 750 Watt Multi Axis Servo Drive With 3M 5M Cable 2
Delivery Time and Shipping Way

1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.


Packing details of Servo Drive
Products E1(3-6A) E2(7-12A) E3(16-27A)
Ctn. Size 280*208*78 280*208*112 375*290*155


Single Phase 750 Watt Multi Axis Servo Drive With 3M 5M Cable 3
