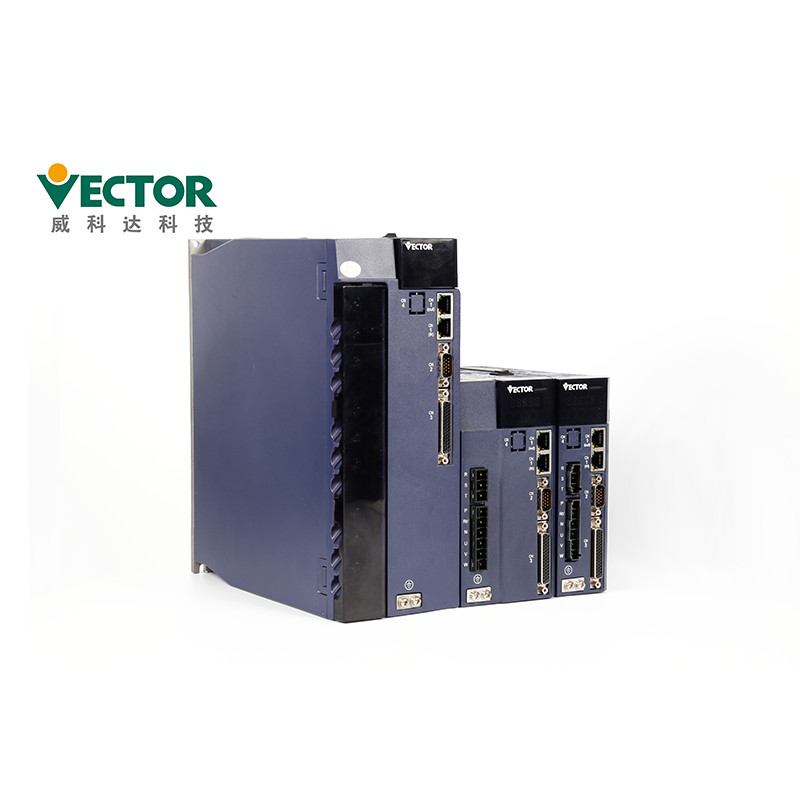

High Torque 10Nm Servo Motor Controller For Robot

High Torque 10Nm Servo Motor Controller For Robot

Product Details:

Place of Origin: China
Brand Name: Vector
Certification: CE
Model Number: VEC-VC-00733HC-M-E

Payment & Shipping Terms:

Minimum Order Quantity: 1 kit
Price: To Be Discussed
Packaging Details: 280*208*78mm,375*290*155mm
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 kits/month
Get Best Price Contact Now

Detail Information

Voltage: 380V Power: 1KW
Phase: Three Phase Communication Protocols: CanOpen
Encoder: 17bit Tamagawa Absolute Encoder; Rated Current: 2.5A
Input/Output: Pulse Control Mode: Position / Speed / Torque
Application: Robot Product Name: Servo Motor Controller
High Light:

1KW Servo Motor Controller


10Nm Servo Motor Controller


10Nm Robotics Servo Drive

Product Description

1000rpm 10Nm High Torque Servo Motor Controller Servo Drive For Robot
Products Description

Product NameServo Drive
Model No.VEC-VC-00733HC-M-E
PhaseSingle/Three Phase
Rated Current2.5A
Communication ProtocolsCANopen
Encoder17bit Tamagawa absolute encoder;

High Torque 10Nm Servo Motor Controller For Robot 0
Installation Precautions
● Install the driver on a dry and sturdy platform. Maintain good ventilation and
heat dissipation during installation and maintain good grounding.
● Please install in the specified direction to avoid malfunction.
● When installing, please ensure that the servo driver is kept at a specified
distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.
High Torque 10Nm Servo Motor Controller For Robot 1
● When installing, do not block the suction and exhaust ports, and do not allow foreign objects inside the product to enter,
otherwise it may cause malfunction or fire due to aging of internal components.
● Do not place heavy objects on or under this product as this may result in injury.
● Please install in the following environment:
1.places without direct sunlight;
2.Locations where the ambient temperature is in the range of 0 ° C to 55 ° C;
3.Relative humidity in the range of 0% to 95%, and no condensation;
4.Locations free of water droplets, vapors, dust and oily dust;
5.Locations where there is no high heat device;
6.Non-corrosive, flammable gas and liquid sites;
7.It is not easy to splash water, oil and medicine;
8.places that are not exposed to radioactive radiation;
9.Strong and vibration-free places;
10.Locations where there is no electromagnetic noise interference.
High Torque 10Nm Servo Motor Controller For Robot 2
The panel contains 8 buttons and 5 digital tubes. Only 5 of the 8 buttons can be used, and the
remaining 3 buttons reserved. The general functions of the five buttons are shown in the table below.

Key NameKey function
PAR/ALMmode switch, return to the previous menu
▲(add)increase flashing bit value of the LED digital tube
▼(dec)Decrease flashing digit value of the LED digital tube
STOP/RSTMoves the blinking LED tube to the left; checks the high value of data
longer than 5 bits; Fault reset;execute Fn function
RD/WTread/write parameter values;enter fn page

Other Questions:
Q1. How to select the suitable model?
A: Please confirm your requirements for Rated Power, Current, Voltage,
Torque and select the suitable model based our model list;
Q2. How to set the programming system?
A: Our Servo drive support the Global Communication protocols: Modbus/CANopen/EtherCAT,
Please Just make the programming follow your experiences;
Q3. What's the power range about our servo system?
A: Our Power range covers 0.2-110KW, reach your requirements;
Q4. What's the encoder feedback interfaces we using?
A: We have multiple Encoder feedback interfaces, like : incremental/wire-saving encoder,
17-bit/23-bit/24-bit absolute encoder, resolver encoder, etc.
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the
variable speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility
standards and its specific test methods), corresponding to the national standard GB12668.3-2012.
High Torque 10Nm Servo Motor Controller For Robot 3
Quality Checking:
Four times Production testing
Two Times 24 hoursTesting
100% Inspection Before Shipping
High Torque 10Nm Servo Motor Controller For Robot 4
Delivery Time and Shipping Way
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.

Quantity1-5 kits50-100 kits200-500 kits
Delivery timeWithin 3 days 5-10 days15-25 days


Packing details of Servo Drive
Ctn. Size280*208*78280*208*112375*290*155

Our Team:
