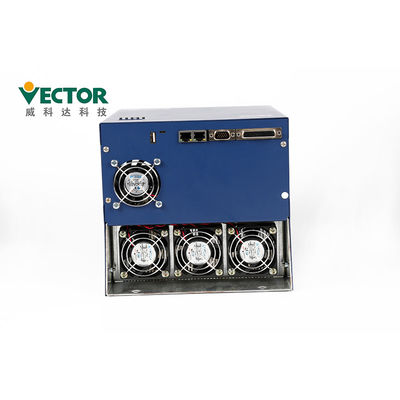

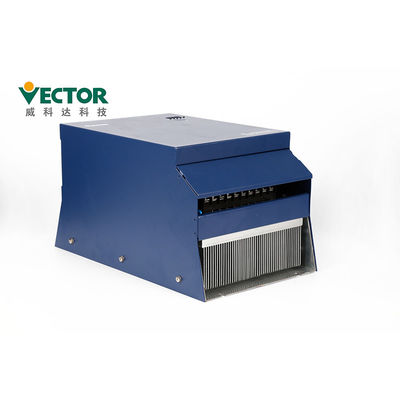

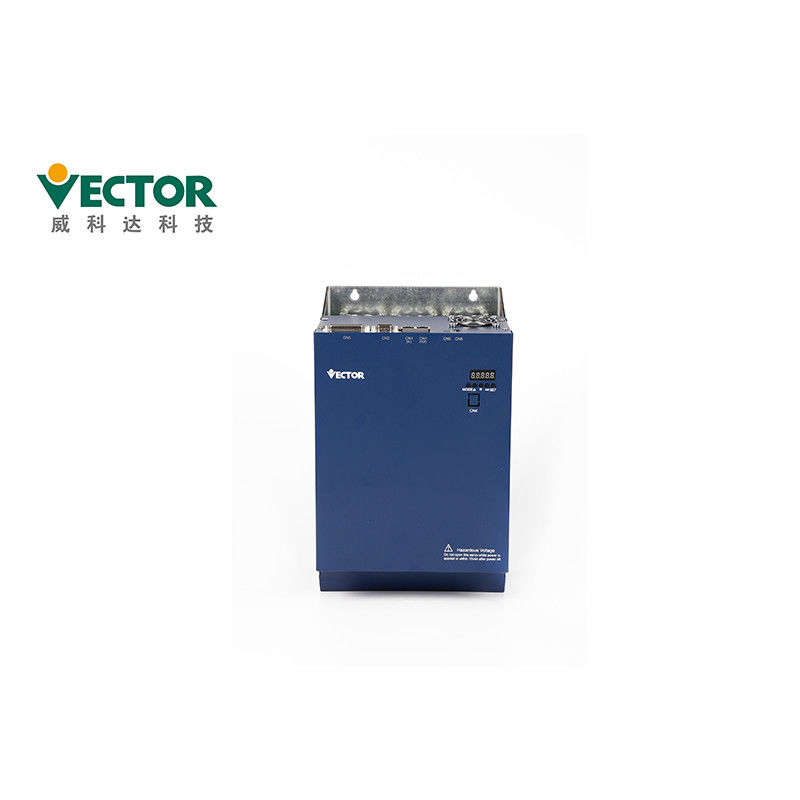

High Torque 55KW Analog Servo Drive CanOpen Communication

High Torque 55KW Analog Servo Drive CanOpen Communication

Product Details:

Place of Origin: China
Brand Name: Vector
Certification: CE
Model Number: VEC-VC-11033H-M-EA

Payment & Shipping Terms:

Minimum Order Quantity: 1 kit
Price: To Be Discussed
Packaging Details: 280*208*78mm,375*290*155mm
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 kits/month
Get Best Price Contact Now

Detail Information

Voltage: 380V Power: 55KW
Phase: Three Phase Communication Protocols: CANopen
Encoder: 17/23 Bit Tamagawa Absolute Encoder Rated Current: 110A
Input: Analog Control Mode: Position / Speed / Torque
Application: CNC Frequency: 4KHz
High Light:

High Torque CanOpen Analog Servo Drive

,

55KW Analog Servo Drive

,

CanOpen 55KW High Torque Servo Drive

Product Description

CanOpen Communication High Torque Analog Servo Drive For CNC Equipment



Item Name: CNC Servo Drive

Power:  55KW

Phase: Three Phase 380V

Communication Type: CanOpen

Control Mode: Position, Speed and Torque Control Mode

Encoder: 17/23 bit Tamagawa absolute encoder



Products Description



Product Name CNC Servo Drive
Brand Vector
Model No. VEC-VC-11033H-M-EA
Power4 55KW
Voltage 380V
Phase Three Phase
Rated Current 110A
Communication Protocols CANopen
Encoder 17/23 bit Tamagawa absolute encoder



How is the Servo Drive works? The Location control model, Speed control model and Trogue control model.


Voltage Control Mode Three-phase full-controlled rectification
SVPWM modulation
Encoder Encoder Feedback

17bit Tamagawa absolute encoder;
23bit Tamagawa absolute encoder;

Pulse Command Input Pulse Type Differential input,Open collector
Frequency Range Differential input:0-500kHz,pulse width greater than 1us
Open collector: 0-300kHz,pulse width greater than 2.5us
Pulse Mode pulse + direction; AB pluses; CW+CCW;
Analog Input Voltage Range -10V to 10V
Input Impedance 10kΩ
Maximum Frequency 1.5kHz
DI/DO Interface Type NPN/PNP
Communication Modbus/CANopen/EtherCAT





Servo Drive Description- Detaails about a Servo Drive, how to select the Servo drive model and do installation?



High Torque 55KW Analog Servo Drive CanOpen Communication 0


Certificates

1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of

the variable speed electric driver system), corresponding to the national standard GB12668.501-2013;

3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility

standards and its specific test methods), corresponding to the national standard GB12668.3-2012.

High Torque 55KW Analog Servo Drive CanOpen Communication 1


Delivery Time and Shipping Way



1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.



Quantity 1-5 kits 50-100 kits 200-500 kits
Delivery time Within 3 days  5-10 days 15-25 days



Packing details of Servo Drive
Products E1(3-6A) E2(7-12A) E3(16-27A) C015(32-38A) C022(45-60A)
Ctn. Size 280*208*78 280*208*112 375*290*155 440*296*288 510*305*325

High Torque 55KW Analog Servo Drive CanOpen Communication 2

Accessories:

  Accessory name Image
Satandard Spare Parts Power terminal High Torque 55KW Analog Servo Drive CanOpen Communication 3 Adapt to E1,E2 structure drive
Cn3 encoder plug Encoder plug on the driver side
Cn4 control terminal plug Input/output signal terminals,user wiring
Encoder connection line The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer
needs Provide independent connector
Power line The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer
needs Provide independent connector
Drive monitoring line Connect and adjust the software for remote monitoring and firmware update
Purchasing Spare Parts USB to RS232 Adapter cable If necessary, self purchase
Ethernet communication line If necessary, self purchase
