Product Details:

Place of Origin: China
Brand Name: Vector
Certification: CE
Model Number: VEC-VC-01633H-M-E

Payment & Shipping Terms:

Minimum Order Quantity: 1 kit
Price: To Be Discussed
Packaging Details: 280*208*78mm,375*290*155mm
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 kits/month
Get Best Price Contact Now

Detail Information

Voltage: 380V Power: 7.5KW
Phase: 3 Phase Communication Protocols: Pulse / CanOpen
Encoder: 24 Bit Absolute Encoder; Rated Current: 16A
Input/Output: Pulse / Analog Control Mode: Location / Speed / Torque
Application: CNC Product Name: CNC AC Servo Motor Drive
High Light:

Compact CNC Servo Drive

,

Compact 7.5KW CNC Servo Drive

,

High Speed 7.5KW Compact Servo Drives

Product Description

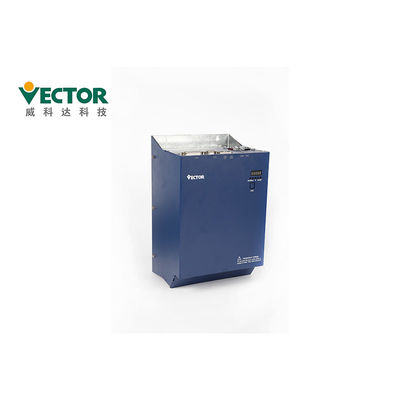

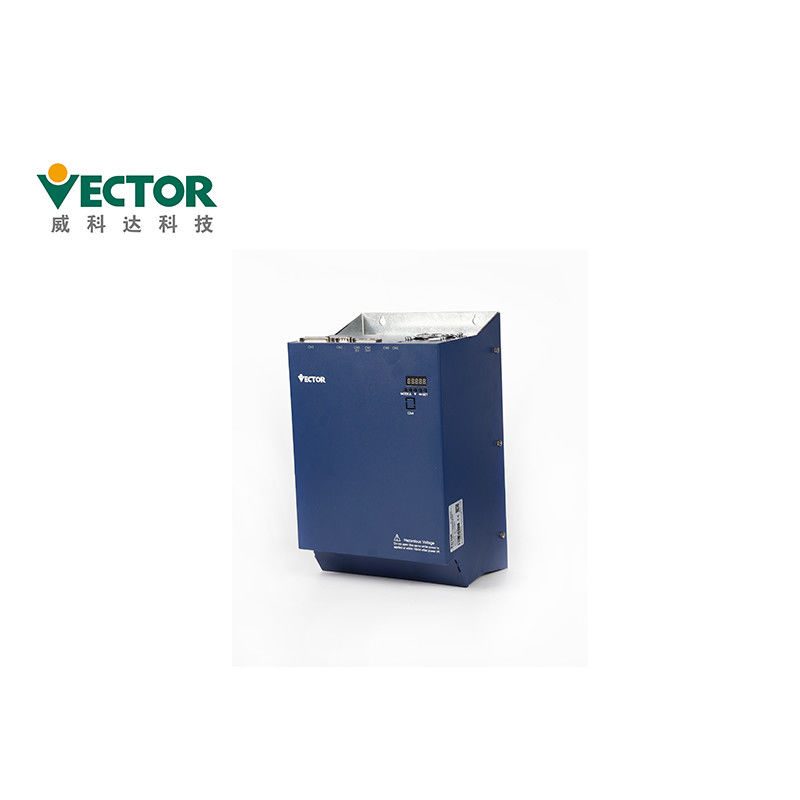

High Speed Compact And Flexible CNC AC Servo Motor Drive With 24 Bit Absolute Encoder

CNC AC Servo Motor Drive
Power 7.5KW
Three Phase 380V
Modbus / CanOpen / EtherCAT
Location, Speed and Torque Control Mode
24 bit absolute encoder;

Products Description

Product Name CNC AC Servo Motor Drive
Brand Vector
Model No. VEC-VC-01633H-M-E
Power 7.5KW
Input/Output Pulse / Analog
Voltage 380V
Phase Three Phase
Rated Current 16A
Communication Protocols Modbus / CanOpen / EtherCAT
Encoder 24 bit absolute encoder;


High Speed 7.5KW CNC Servo Drive Compact Servo Drives 0High Speed 7.5KW CNC Servo Drive Compact Servo Drives 1

Installation Precautions

Installation
Environment
Requirements
Atmospheric Pressure 86~106kPa
Mbient Humidity 0~55℃
Ambient Temperature 0~90%RH
IP Rating IP20
Vibration 0~4.9m/s^2


● When installing, do not block the suction and exhaust ports, and do not allow foreign objects

inside the product to enter,otherwise it may cause malfunction or fire due to aging of internal components.
● Do not place heavy objects on or under this product as this may result in injury.
● Please install in the following environment:
1.places without direct sunlight;
2.Locations where the ambient temperature is in the range of 0 ° C to 55 ° C;
3.Relative humidity in the range of 0% to 95%, and no condensation;
4.Locations free of water droplets, vapors, dust and oily dust;
5.Locations where there is no high heat device;
6.Non-corrosive, flammable gas and liquid sites;
7.It is not easy to splash water, oil and medicine;
8.places that are not exposed to radioactive radiation;
9.Strong and vibration-free places;
10.Locations where there is no electromagnetic noise interference.

The panel contains 5 buttons and 5 digital tubes.
The general functions of the five buttons are shown in the table below.

Key Name Key function
Mode mode switch, return to the previous menu
▲(add) increase flashing bit value of the LED digital tube
▼(dec) Decrease flashing digit value of the LED digital tube
◄◄(shift) Moves the blinking LED tube to the left; checks the high value of data
longer than 5 bits; Fault reset;execute Fn function
SET read/write parameter values



Accessories:



  Accessory name Image
Satandard Spare Parts Power terminal High Speed 7.5KW CNC Servo Drive Compact Servo Drives 2 Adapt to E1,E2 structure drive
Cn3 encoder plug Encoder plug on the driver side
Cn4 control terminal plug Input/output signal terminals,user wiring
Encoder connection line The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer
needs Provide independent connector
Power line The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer
needs Provide independent connector
Drive monitoring line Connect and adjust the software for remote monitoring and firmware update
Purchasing Spare Parts USB to RS232 Adapter cable If necessary, self purchase
Ethernet communication line If necessary, self purchase


Other Questions:
Q1. How to select the suitable model?
A: Please confirm your requirements for Rated Power, Current, Voltage,
Torque and select the suitable model based our model list;
Q2. How to set the programming system?
A: Our Servo drive support the Global Communication protocols: Modbus/CANopen/EtherCAT,
Please Just make the programming follow your experiences;
Q3. What's the power range about our servo system?
A: Our Power range covers 0.2-110KW, reach your requirements;
Q4. What's the encoder feedback interfaces we using?
A: We have multiple Encoder feedback interfaces, like : incremental/wire-saving encoder,
17-bit/23-bit/24-bit absolute encoder, resolver encoder, etc.

Certificates
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the
variable speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility
standards and its specific test methods), corresponding to the national standard GB12668.3-2012.

High Speed 7.5KW CNC Servo Drive Compact Servo Drives 3


Quality Checking:
Four times Production testing
Two Times 24 hoursTesting
100% Inspection Before Shipping
High Speed 7.5KW CNC Servo Drive Compact Servo Drives 4
Delivery Time and Shipping Way

1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.


Packing details of Servo Drive
Products E1(3-6A) E2(7-12A) E3(16-27A)
Ctn. Size 280*208*78 280*208*112 375*290*155



Our Team:
High Speed 7.5KW CNC Servo Drive Compact Servo Drives 5
