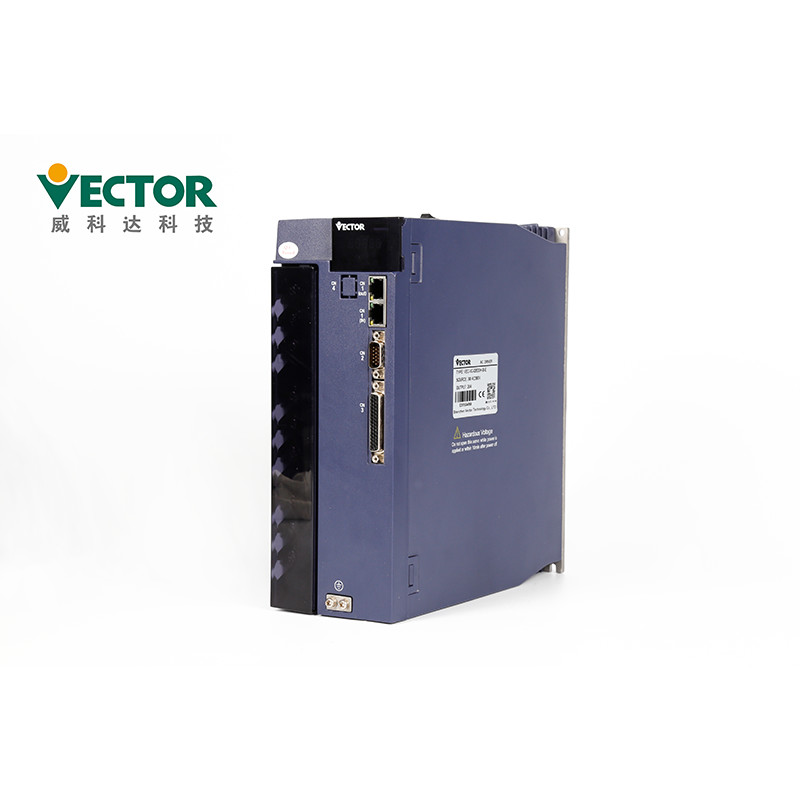

EU Safety Standard 220V Multi Axis Servo Drive For PLC Control System

EU Safety Standard 220V Multi Axis Servo Drive For PLC Control System

Product Details:

Place of Origin: China
Brand Name: Vector
Certification: CE
Model Number: VEC-VC-00323H-M-E

Payment & Shipping Terms:

Minimum Order Quantity: 1 kit
Price: To Be Discussed
Packaging Details: 280*208*78mm,375*290*155mm
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 kits/month
Get Best Price Contact Now

Detail Information

Voltage: 220V Power: 0.4KW
Phase: Single Phase Communication Protocols: Modbus/EtherCAT/CanOpen
Encoder: 2500 Pulse Incremental + Hall Encoder; Rated Current: 3A
Input: Pulse/Analog Control Mode: Location / Speed / Torque
Application: Packing & Printing Product Name: Small Servo Motors And Drives
High Light:

EU Standard Multi Axis Servo Drive

,

220V Multi Axis Servo Drive

,

220V Servo Motors And Drives

Product Description

220V/380V Motion Control Servo Drive Amplifier For Injection Molding Machine



Products Description



Product Name Motion Control Servo Drive Amplifier
Brand Vector
Model No. VEC-VC-00323H-M-E
Power4 0.4KW
Input Pulse/Analog
Voltage 220V
Phase Single/Three Phase
Rated Current 3A
Communication Protocols Modbus/CANopen/EtherCAT
Encoder 12500 pulse incremental + Hall encoder;



EU Safety Standard 220V Multi Axis Servo Drive For PLC Control System 0



E structure servo driver panel
There are a total of four operating modes, namely status display, parameter reading and
writing, variable monitoring, and functional operation.
Panel operation mode mode introduction
Status display Displays the status of the drive, such as reset (panel display rst), ready (panel display rdy), run (panel display run), fault (Er.xxx), or monitor a specific variable in the run (eg speed, busbar) Voltage, etc.)
Parameter reading and
writing
Reading and writing all parameters
Variable monitoring Monitors a variable or IO state of a drive
Function operation Perform specific functions, such as jog test run, parameter reset factory value, driver reset



                    EU Safety Standard 220V Multi Axis Servo Drive For PLC Control System 1

The panel contains 5 buttons and 5 digital tubes.

The general functions of the five buttons are shown in the table below.

Key Name Key function
Mode mode switch, return to the previous menu
▲(add) increase flashing bit value of the LED digital tube
▼(dec) Decrease flashing digit value of the LED digital tube
◄◄(shift) Moves the blinking LED tube to the left; checks the high value of data
longer than 5 bits; Fault reset;execute Fn function
SET read/write parameter values



Other Questions:

Q1. How to select the suitable model?
A: Please confirm your requirements for Rated Power, Current, Voltage, Torque and select the suitable model based our model list;

Q2. How to set the programming system?
A: Our Servo drive support the Global Communication protocols: Modbus/CANopen/EtherCAT, Please Just make the programming follow your experiences;

Q3. What's the power range about our servo system?
A: Our Power range covers 0.2-110KW, reach your requirements;

Q4. What's the encoder feedback interfaces we using?
A: We have multiple Encoder feedback interfaces, like : incremental/wire-saving encoder, 17-bit/23-bit/24-bit absolute encoder, resolver encoder, etc.



Certificates

1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of

the variable speed electric driver system), corresponding to the national standard GB12668.501-2013;

3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility

standards and its specific test methods), corresponding to the national standard GB12668.3-2012.

EU Safety Standard 220V Multi Axis Servo Drive For PLC Control System 2


Quality Checking:

Four times Production testing
Two Times 24 hoursTesting
100% Inspection Before Shipping

EU Safety Standard 220V Multi Axis Servo Drive For PLC Control System 3


Delivery Time and Shipping Way



1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.



Quantity 1-5 kits 50-100 kits 200-500 kits
Delivery time Within 3 days  5-10 days 15-25 days



Packing details of Servo Drive
Products E1(3-6A) E2(7-12A) E3(16-27A)
Ctn. Size 280*208*78 280*208*112 375*290*155



EU Safety Standard 220V Multi Axis Servo Drive For PLC Control System 4
