CE 380V 3KW Programmable Servo Drive For Food Packing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Vector |
| Certification: | CE |
| Model Number: | VEC-VC-01233H-M-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kit |
|---|---|
| Price: | To Be Discussed |
| Packaging Details: | 280*208*78mm,375*290*155mm |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 kits/month |
|
Detail Information |
|||
| Voltage: | 380V | Power: | 3KW |
|---|---|---|---|
| Phase: | Three Phase | Communication Protocols: | Modbus/EtherCAT/CanOpen |
| Encoder: | 17/23 Bit Tamagawa Absolute Encoder | Rated Current: | 12A |
| Input: | Analog/Pulse | Control Mode: | Position / Speed / Torque |
| Application: | Food Packing Machine | ||
| High Light: | CE 380V Programmable Servo Drive,3KW Programmable Servo Drive,Food Packing Machine 380V Servo Drive |
||
Product Description

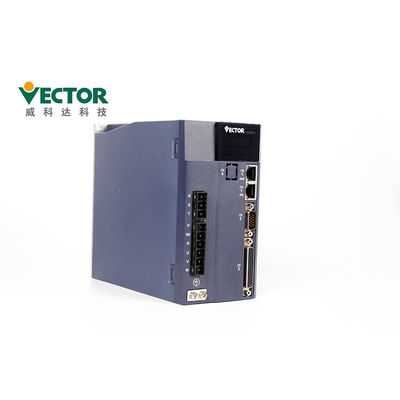

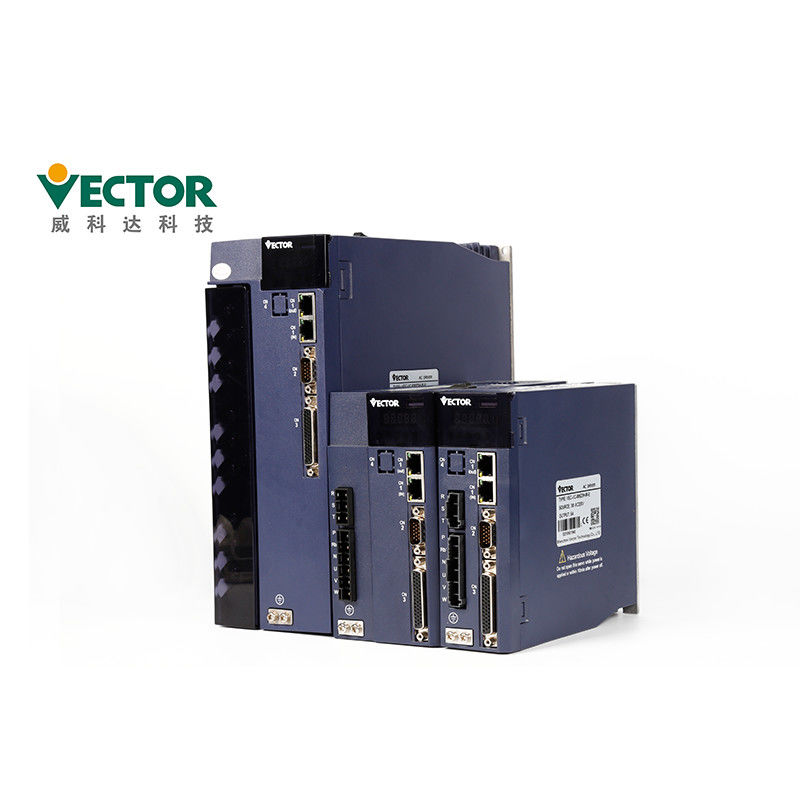

380V 3KW Programmable Servo Drive For Food Packing Machine With CE Certificates
Products Description
| Product Name | AC Servo Drive |
| Brand | Vector |
| Model No. | VEC-VC-01223H-M-E |
| Power4 | 3KW |
| Voltage | 380V |
| Phase | Single/Three Phase |
| Rated Current | 12A |
| Communication Protocols | Modbus/CANopen/EtherCAT |
| Encoder | 17/23 bit Tamagawa absolute encoder |
How is the Servo Drive works? The Location control model, Speed control model and Trogue control model.
| Voltage | Control Mode | Single-phase / three-phase full-controlled rectification SVPWM modulation |
| Encoder | Encoder Feedback | 2500 pulse incremental + Hall encoder; 2500 pulse incremental; 17bit Tamagawa absolute encoder; 23bit Tamagawa absolute encoder; 24bit Nikon absolute encoder; |
| Pulse Command Input | Pulse Type | Differential input,Open collector |
| Frequency Range | Differential input:0-500kHz,pulse width greater than 1us Open collector: 0-300kHz,pulse width greater than 2.5us |
|
| Pulse Mode | pulse + direction; AB pluses; CW+CCW; | |
| Analog Input | Voltage Range | -10V to 10V |
| Input Impedance | 10kΩ | |
| Maximum Frequency | 1.5kHz | |
| DI/DO Interface Type | NPN/PNP | |
| Communication | Modbus/CANopen/EtherCAT | |
Servo Drive Description- Details about a Servo Drive, how to select the Servo drive model and do installation?
| Key Name | Key function |
| Mode | mode switch, return to the previous menu |
| ▲(add) | increase flashing bit value of the LED digital tube |
| ▼(dec) | Decrease flashing digit value of the LED digital tube |
| ◄◄(shift) | Moves the blinking LED tube to the left; checks the high value of data longer than 5 bits; Fault reset;execute Fn function |
| SET | read/write parameter values |
● Install the driver on a dry and sturdy platform. Maintain good ventilation and
heat dissipation during installation and maintain good grounding.
● Please install in the specified direction to avoid malfunction.
● When installing, please ensure that the servo driver is kept at a specified
distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.
● When installing, do not block the suction and exhaust ports, and do not allow foreign objects inside
the product to enter, otherwise it may cause malfunction or fire due to aging of internal components.
● Do not place heavy objects on or under this product as this may result in injury.
● Please install in the following environment:
1.places without direct sunlight;
2.Locations where the ambient temperature is in the range of 0 ° C to 55 ° C;
3.Relative humidity in the range of 0% to 95%, and no condensation;
4.Locations free of water droplets, vapors, dust and oily dust;
5.Locations where there is no high heat device;
6.Non-corrosive, flammable gas and liquid sites;
7.It is not easy to splash water, oil and medicine;
8.places that are not exposed to radioactive radiation;
9.Strong and vibration-free places;
10.Locations where there is no electromagnetic noise interference.
| Installation Environment Requirements |
Atmospheric Pressure | 86~106kPa |
| Mbient Humidity | 0~55℃ | |
| Ambient Temperature | 0~90%RH | |
| IP Rating | IP20 | |
| Vibration | 0~4.9m/s^2 |
Certificates
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of
the variable speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility
standards and its specific test methods), corresponding to the national standard GB12668.3-2012.
Quality Checking:
Four times Production testing
Two Times 24 hoursTesting
100% Inspection Before Shipping
Delivery Time and Shipping Way
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
| Quantity | 1-5 kits | 50-100 kits | 200-500 kits |
| Delivery time | Within 3 days | 5-10 days | 15-25 days |
| Packing details of Servo Drive | |||||
| Products | E1(3-6A) | E2(7-12A) | E3(16-27A) | C015(32-38A) | C022(45-60A) |
| Ctn. Size | 280*208*78 | 280*208*112 | 375*290*155 | 440*296*288 | 510*305*325 |
Accessories:
| Accessory name | Image | ||
| Satandard Spare Parts | Power terminal | |
Adapt to E1,E2 structure drive |
| Cn3 encoder plug | Encoder plug on the driver side | ||
| Cn4 control terminal plug | Input/output signal terminals,user wiring | ||
| Encoder connection line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
| Power line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
| Drive monitoring line | Connect and adjust the software for remote monitoring and firmware update | ||
| Purchasing Spare Parts | USB to RS232 Adapter cable | If necessary, self purchase | |
| Ethernet communication line | If necessary, self purchase |
