3 Phase Digital 2KW AC Servo Drive With 24bit Nikon Absolute Encoder
Product Details:
| Place of Origin: | China |
| Brand Name: | Vector |
| Certification: | CE |
| Model Number: | VEC-VC-01223H-M-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kit |
|---|---|
| Price: | To Be Discussed |
| Packaging Details: | 280*208*78mm,375*290*155mm |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 kits/month |
|
Detail Information |
|||
| Voltage: | 220V | Power: | 2KW |
|---|---|---|---|
| Phase: | Three Phase | Communication Protocols: | Modbus/EtherCAT |
| Encoder: | 24 Bit Tamagawa Absolute Encoder | Rated Current: | 12A |
| Input: | Analog/Digital | Control Mode: | Location / Speed / Torque |
| Application: | Laminating Machine | Frequency: | 4KHz |
| High Light: | Digital 2KW AC Servo Drive,24bit Encoder 2KW AC Servo Drive,2KW Digital Servo Drive |
||
Product Description

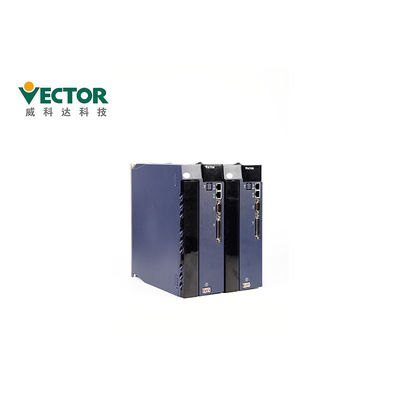

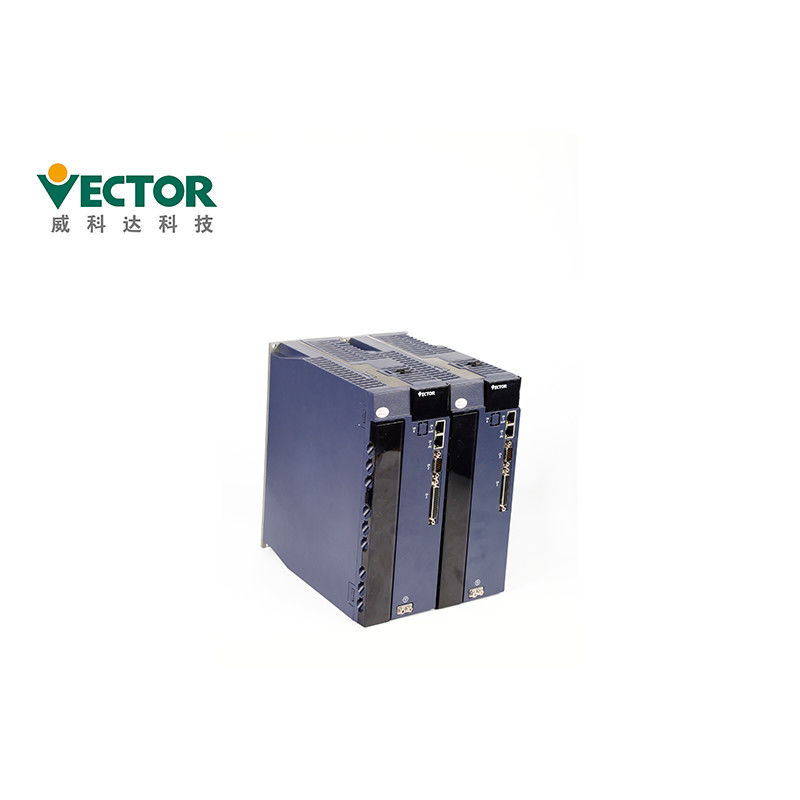

220V 2KW Three Phase Digital Servo Drive With 24bit Nikon Absolute Encoder
Products Description
| Product Name | Digital Servo Drive |
| Brand | Vector |
| Model No. | VEC-VC-01223H-M-E |
| Power4 | 2KW |
| Voltage | 220V |
| Phase | Three Phase |
| Rated Current | 12A |
| Communication Protocols | CANopen/EtherCAT |
| Encoder | 24 bit Tamagawa absolute encoder |
How is the Servo Drive works? The Location control model, Speed control model and Trogue control model.
| Digital Input |
Enable Drive, Reset Drive, Torque Command A/B Switch, Torque Command Reverse Enable, Forward Torque Limit A/B Switch,
Negative Torque Limit A/B Switch, Forward Speed Limit A /B switch, negative speed limit A/B switch, forward jog, reverse jog, speed command reverse enable, main speed source A/B switch, speed stop enable, clear position count, speed mode Zero fixed, multi-speed speed selection 0, multi-speed speed selection 1, multi-speed speed selection 2, multi-speed speed selection 3,
Position command prohibited, position command reverse, pulse command prohibited, electronic gear ratio switch 1, position error Clear, return to zero, trigger multi-segment position, multi-segment position selection 0, multi-segment position selection 1, multi-segment position selection 2, multi-segment position selection 3, multi-segment position direction selection, zero return origin switch input, xy pulse and internal position planning switching,
Control Mode switch 0, control mode switch 1, enable interrupt fixed length input, cancel interrupt fixed length, trigger interrupt fixed length, first set of second set gain switch, reset fault, positive limit switch in position mode, Reverse limit switch in position mode, open and closed loop in full closed loop mode , electronic gear ratio switch2, motor overheat input, emergency stop input, internal trigger clear, internal trigger set,internal counter count pulse, internal counter clear, speed mode UPDOWN mode UP signal, speed mode UPDOWN mode DOWN Signal, AI zero drift automatic correction. |
|
| Digital Output |
Driver enabled, speed arrival, speed reduction, speed increase, zero speed, speed over limit, forward rotation, reverse rotation, fault output, forward speed limit in torque mode, Torque mode In the negative speed limit, in the torque mode, the positioning is completed, the positioning is close to the output, the zero return is completed, the position error is too large, the output is interrupted by the fixed length, the software limit output is output, the brake output is Input command is valid, often OFF, always ON, Torque limit output, torque arrival, internal trigger status, internal counter count arrives, speed is consistent, pulse position command is zero output |
|
Servo Drive Description- Detaails about a Servo Drive, how to select the Servo drive model and do installation?
Certificates
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of
the variable speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility
standards and its specific test methods), corresponding to the national standard GB12668.3-2012.
Delivery Time and Shipping Way
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
| Quantity | 1-5 kits | 50-100 kits | 200-500 kits |
| Delivery time | Within 3 days | 5-10 days | 15-25 days |
| Packing details of Servo Drive | |||||
| Products | E1(3-6A) | E2(7-12A) | E3(16-27A) | C015(32-38A) | C022(45-60A) |
| Ctn. Size | 280*208*78 | 280*208*112 | 375*290*155 | 440*296*288 | 510*305*325 |
Accessories:
| Accessory name | Image | ||
| Satandard Spare Parts | Power terminal | |
Adapt to E1,E2 structure drive |
| Cn3 encoder plug | Encoder plug on the driver side | ||
| Cn4 control terminal plug | Input/output signal terminals,user wiring | ||
| Encoder connection line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
| Power line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
| Drive monitoring line | Connect and adjust the software for remote monitoring and firmware update | ||
| Purchasing Spare Parts | USB to RS232 Adapter cable | If necessary, self purchase | |
| Ethernet communication line | If necessary, self purchase |
