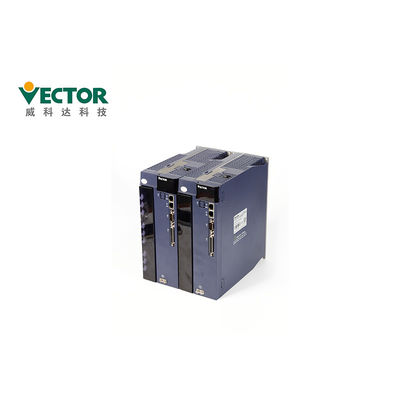

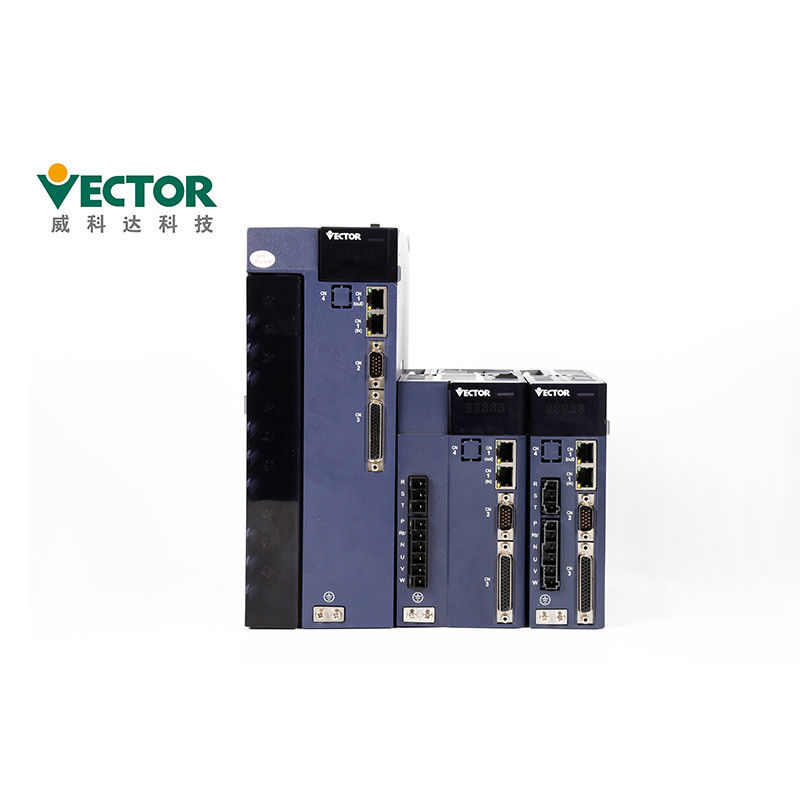

380V 4KW AC Servo Drive With 23 Bit Tamagawa Absolute Encoder
Product Details:
| Place of Origin: | China |
| Brand Name: | Vector |
| Certification: | CE |
| Model Number: | VEC-VC-00733H-M-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kit |
|---|---|
| Price: | To Be Discussed |
| Packaging Details: | 280*208*78mm,375*290*155mm |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 kits/month |
|
Detail Information |
|||
| Voltage: | 380V | Power: | 4KW |
|---|---|---|---|
| Phase: | Single Phase, Three Phase | Communication Protocols: | Modbus/CANopen/EtherCAT |
| Encoder: | 2500 Lines Incremental Hall Encoder | Rated Current: | 7A |
| Input: | Analog / Pulse | Control Mode: | Position / Speed / Torque |
| Application: | Printer,packing Machine | Frequency: | 4KHz |
| High Light: | 380V AC Servo Drive,4KW AC Servo Drive,4KW AC Servo Driver |
||
Product Description
380V 4KW Ac Servo Driver Application Vertical Packing Machine
Item Name: AC Servo Drive
Power: 4KW
Phase: Single/Three Phase 380V
Communication Type: Modbus / CanOpen / EtherCAT
Control Mode: Position, Speed and Torque Control Mode
Encoder: 17/23 bit Tamagawa absolute encoder; 24 bit Nikon absolute encoder
Products Description
| Product Name | AC Servo Drive |
| Brand | Vector |
| Model No. | VEC-VC-00733H-M-E |
| Power4 | KW |
| Voltage | 380V |
| Phase | Three Phase |
| Rated Current | 7A |
| Communication Protocols | Modbus/CANopen/EtherCAT |
| Encoder | 23 bit Tamagawa absolute encoder |
How is the Servo Drive works? The Location control model, Speed control model and Trogue control model.
| Voltage | Control Mode | Single-phase / three-phase full-controlled rectification SVPWM modulation |
| Encoder | Encoder Feedback | 2500 pulse incremental + Hall encoder; 2500 pulse incremental; 17bit Tamagawa absolute encoder; 23bit Tamagawa absolute encoder; 24bit Nikon absolute encoder; |
| Pulse Command Input | Pulse Type | Differential input,Open collector |
| Frequency Range | Differential input:0-500kHz,pulse width greater than 1us Open collector: 0-300kHz,pulse width greater than 2.5us |
|
| Pulse Mode | pulse + direction; AB pluses; CW+CCW; | |
| Analog Input | Voltage Range | -10V to 10V |
| Input Impedance | 10kΩ | |
| Maximum Frequency | 1.5kHz | |
| DI/DO Interface Type | NPN/PNP | |
| Communication | Modbus/CANopen/EtherCAT | |
| Position Mode | Command Input Method | Pulse Command Internal Planning Position > Plan by target position, speed, acceleration and deceleration time > Trapezoidal speed curve > Cubic speed curve > Absolute / relative command mode |
| Instruction Smoothing Mode | Low Pass Filtering / Median Filtering | |
| Electronic Gear Ratio | N/M;(M=1~2147483647,N=1~2147483647) | |
| Torque Limit | Internal Torque Limit / Analog Torque Limit | |
| Feedforward Compensation | Speed Feedforward / Torque Feedforward | |
| Torque Compensation | Fixed Torque Compensation / Analog Torque Compensation / Automatic Torque Compensation; |
|
Servo Drive Description- Detaails about a Servo Drive, how to select the Servo drive model and do installation?
 The panel contains 5 buttons and 5 digital tubes. The general functions of the five buttons are shown in the table below. |
|
| Key Name | Key function |
| Mode | mode switch, return to the previous menu |
| ▲(add) | increase flashing bit value of the LED digital tube |
| ▼(dec) | Decrease flashing digit value of the LED digital tube |
| ◄◄(shift) | Moves the blinking LED tube to the left; checks the high value of data longer than 5 bits; Fault reset;execute Fn function |
| SET | read/write parameter values |
Certificates
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of
the variable speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility
standards and its specific test methods), corresponding to the national standard GB12668.3-2012.
Delivery Time and Shipping Way
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
| Quantity | 1-5 kits | 50-100 kits | 200-500 kits |
| Delivery time | Within 3 days | 5-10 days | 15-25 days |
| Packing details of Servo Drive | |||||
| Products | E1(3-6A) | E2(7-12A) | E3(16-27A) | C015(32-38A) | C022(45-60A) |
| Ctn. Size | 280*208*78 | 280*208*112 | 375*290*155 | 440*296*288 | 510*305*325 |
