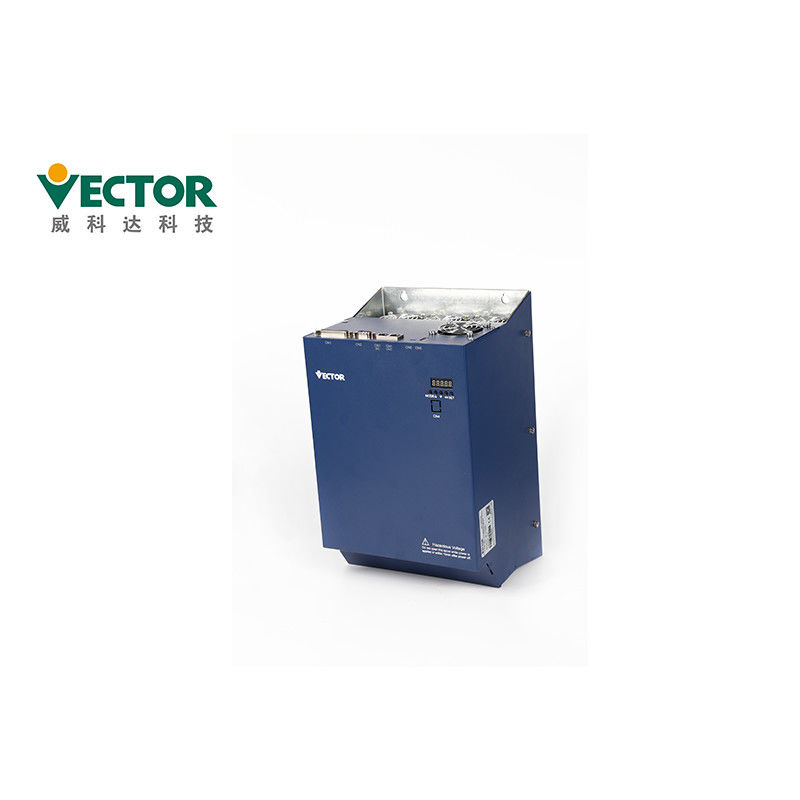

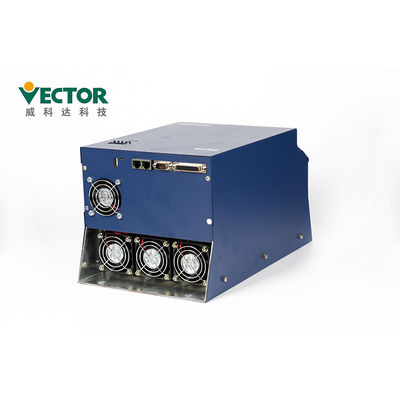

220V 380V Motion Control Servo Drive Amplifier For Injection Molding Machine

220V 380V Motion Control Servo Drive Amplifier For Injection Molding Machine

Product Details:

Place of Origin: China
Brand Name: Vector
Certification: CE
Model Number: VEC-VC-01233H-M-E

Payment & Shipping Terms:

Minimum Order Quantity: 1 kit
Price: To Be Discussed
Packaging Details: 280*208*78mm,375*290*155mm
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 kits/month
Get Best Price Contact Now

Detail Information

Voltage: 220V-380V Power: 5.5KW
Phase: Single / Three Phase Communication Protocols: Modbus/EtherCAT/CanOpen
Encoder: 17/23/24 Bit Absolute Encoder Rated Current: 12A
Input: Pulse/Analog Control Mode: Position / Speed / Torque
Application: Injection Molding Machine Product Name: Motion Control Servo Drive Amplifier
High Light:

380V 5.5KW Motion Control Servo Drive

,

380V Motion Control Servo Drive

,

380V Servo Drive Amplifier

Product Description

220V/380V Motion Control Servo Drive Amplifier For Injection Molding Machine



Products Description



Product Name Motion Control Servo Drive Amplifier
Brand Vector
Model No. VEC-VC-01233H-M-E
Power4 5.5KW
Input Pulse/Analog
Voltage 220V-380V
Phase Single/Three Phase
Rated Current 12A
Communication Protocols Modbus/CANopen/EtherCAT
Encoder 17/23/24 bit absolute encoder



E structure servo driver panel
There are a total of four operating modes, namely status display, parameter reading and
writing, variable monitoring, and functional operation.
Panel operation mode mode introduction
Status display Displays the status of the drive, such as reset (panel display rst), ready (panel display rdy), run (panel display run), fault (Er.xxx), or monitor a specific variable in the run (eg speed, busbar) Voltage, etc.)
Parameter reading and
writing
Reading and writing all parameters
Variable monitoring Monitors a variable or IO state of a drive
Function operation Perform specific functions, such as jog test run, parameter reset factory value, driver reset



                    220V 380V Motion Control Servo Drive Amplifier For Injection Molding Machine 0

The panel contains 5 buttons and 5 digital tubes.

The general functions of the five buttons are shown in the table below.

Key Name Key function
Mode mode switch, return to the previous menu
▲(add) increase flashing bit value of the LED digital tube
▼(dec) Decrease flashing digit value of the LED digital tube
◄◄(shift) Moves the blinking LED tube to the left; checks the high value of data
longer than 5 bits; Fault reset;execute Fn function
SET read/write parameter values



Other Questions:

Q1. How to select the suitable model?
A: Please confirm your requirements for Rated Power, Current, Voltage, Torque and select the suitable model based our model list;

Q2. How to set the programming system?
A: Our Servo drive support the Global Communication protocols: Modbus/CANopen/EtherCAT, Please Just make the programming follow your experiences;

Q3. What's the power range about our servo system?
A: Our Power range covers 0.2-110KW, reach your requirements;

Q4. What's the encoder feedback interfaces we using?
A: We have multiple Encoder feedback interfaces, like : incremental/wire-saving encoder, 17-bit/23-bit/24-bit absolute encoder, resolver encoder, etc.



Certificates

1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of

the variable speed electric driver system), corresponding to the national standard GB12668.501-2013;

3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility

standards and its specific test methods), corresponding to the national standard GB12668.3-2012.

220V 380V Motion Control Servo Drive Amplifier For Injection Molding Machine 1


Quality Checking:

Four times Production testing
Two Times 24 hoursTesting
100% Inspection Before Shipping

220V 380V Motion Control Servo Drive Amplifier For Injection Molding Machine 2


Delivery Time and Shipping Way



1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.



Quantity 1-5 kits 50-100 kits 200-500 kits
Delivery time Within 3 days  5-10 days 15-25 days



Packing details of Servo Drive
Products E1(3-6A) E2(7-12A) E3(16-27A) C015(32-38A) C022(45-60A)
Ctn. Size 280*208*78 280*208*112 375*290*155 440*296*288 510*305*325



220V 380V Motion Control Servo Drive Amplifier For Injection Molding Machine 3
