11KW Digital Servo Drive CNC Motion Controller For CNC Lathe And Milling Machine

11KW Digital Servo Drive CNC Motion Controller For CNC Lathe And Milling Machine

Product Details:

Place of Origin: China
Brand Name: Vector
Certification: CE
Model Number: VEC-VC-02733H-M-E

Payment & Shipping Terms:

Minimum Order Quantity: 1 kit
Price: To Be Discussed
Packaging Details: 280*208*78mm,375*290*155mm
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 kits/month
Get Best Price Contact Now

Detail Information

Voltage: 380V Power: 11KW
Phase: 3 Phase Communication Protocols: CanOpen / Ethercat / Modbus
Encoder: 23 Bit Absolute Encoder; Rated Current: 27A
Input/Output: Pulse / Analog Control Mode: Torque
Application: CNC Lathe And Milling Machine Product Name: Digital AC Servo Drive Controller
High Light:

11KW Digital Servo Drive

,

Milling Machine Digital Servo Drive

,

11KW CNC Motion Controller

Product Description

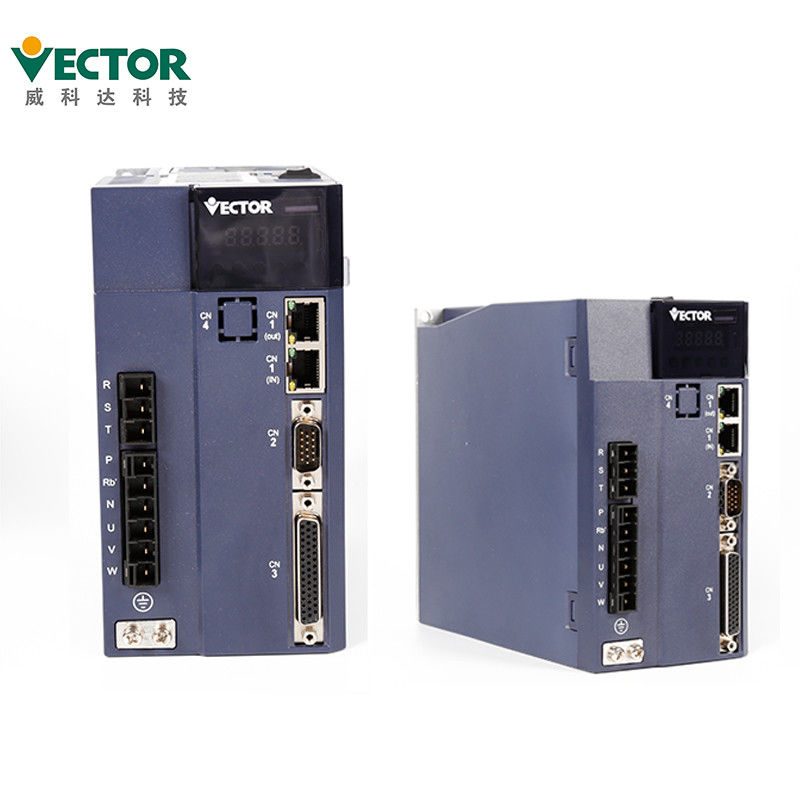

Digital AC Servo Drive Controller For CNC Lathe And Milling Machine

Digital AC Servo Drive Controller
AC Power 11KW
Three Phase 380V
Modbus / CanOpen / EtherCAT
Location / Speed / Torque Control Mode
23 bit absolute encoder;

Products Description

Product Name Digital AC Servo Drive Controller
Brand Vector
Model No. VEC-VC-02733H-M-E
Power 30KW
Input/Output Pulse / Analog
Voltage 380V
Phase Three Phase
Rated Current 27A
Communication Protocols Modbus / CanOpen / EtherCAT
Encoder 23 bit absolute encoder;



Voltage Control Mode Single-phase / three-phase full-controlled rectification
SVPWM modulation
Encoder Encoder Feedback 2500 pulse incremental + Hall encoder;
2500 pulse incremental;
17bit Tamagawa absolute encoder;
23bit Tamagawa absolute encoder;
24bit Nikon absolute encoder;
Pulse Command Input Pulse Type Differential input,Open collector
Frequency Range Differential input:0-500kHz,pulse width greater than 1us
Open collector: 0-300kHz,pulse width greater than 2.5us
Pulse Mode pulse + direction; AB pluses; CW+CCW;
Analog Input Voltage Range -10V to 10V
Input Impedance 10kΩ
Maximum Frequency 1.5kHz
DI/DO Interface Type NPN/PNP
Communication Modbus/CANopen/EtherCAT



Position Mode Command Input Method Pulse Command
Internal Planning Position

Plan by target position, speed, acceleration and deceleration
time

Trapezoidal speed curve
Cubic speed curve
Absolute / relative command mode
Instruction Smoothing Mode Low Pass Filtering / Median Filtering
Electronic Gear Ratio N/M;(M=1~2147483647,N=1~2147483647)
Torque Limit Internal Torque Limit / Analog Torque Limit
Feedforward Compensation Speed Feedforward / Torque Feedforward
Torque Compensation Fixed Torque Compensation / Analog Torque Compensation /
Automatic Torque Compensation;
Speed Contol Mode Command Input Type Pulse Frequency / Analog / Internal Planning Speed
Speed Control Range 1~max speed
Bandwidth 1kHz
Torque Limit Internal Torque Limit / Analog Torque Limit
Instruction Smoothing Mode Low Pass Filtering / Median Filtering
Feedforward Compensation Torque feedforward
Torque Compensation Fixed Torque Compensation / Analog Torque Compensation /
Automatic Torque Compensation;
Torque Control Mode Command Input Type Internal Torque Reference / Analog Control Torque
Torque Compensation Fixed Torque Compensation / Analog Torque Compensation /
Automatic Torque Compensation;
Speed Limit Internal Speed Limit / Analog Speed Limit


Installation Precautions



● Install the driver on a dry and sturdy platform. Maintain good ventilation and

heat dissipation during installation and maintain good grounding.

● Please install in the specified direction to avoid malfunction.

● When installing, please ensure that the servo driver is kept at a specified distance from the inner

surface of the cabinet and other machines, otherwise it may cause fire or malfunction.

11KW Digital Servo Drive CNC Motion Controller For CNC Lathe And Milling Machine 0



Installation
Environment
Requirements
Atmospheric Pressure 86~106kPa
Mbient Humidity 0~55℃
Ambient Temperature 0~90%RH
IP Rating IP20
Vibration 0~4.9m/s^2


● When installing, do not block the suction and exhaust ports, and do not allow foreign objects

inside the product to enter,otherwise it may cause malfunction or fire due to aging of internal components.
● Do not place heavy objects on or under this product as this may result in injury.
● Please install in the following environment:
1.places without direct sunlight;
2.Locations where the ambient temperature is in the range of 0 ° C to 55 ° C;
3.Relative humidity in the range of 0% to 95%, and no condensation;
4.Locations free of water droplets, vapors, dust and oily dust;
5.Locations where there is no high heat device;
6.Non-corrosive, flammable gas and liquid sites;
7.It is not easy to splash water, oil and medicine;
8.places that are not exposed to radioactive radiation;
9.Strong and vibration-free places;
10.Locations where there is no electromagnetic noise interference.
 11KW Digital Servo Drive CNC Motion Controller For CNC Lathe And Milling Machine 1

The panel contains 8 buttons and 5 digital tubes. Only 5 of the 8 buttons can be used, and the

remaining 3 buttons reserved. The general functions of the five buttons are shown in the table below.

Key Name Key function
PAR/ALM mode switch, return to the previous menu
▲(add) increase flashing bit value of the LED digital tube
▼(dec) Decrease flashing digit value of the LED digital tube
STOP/RST Moves the blinking LED tube to the left; checks the high value of data
longer than 5 bits; Fault reset;execute Fn function
RD/WT read/write parameter values;enter fn page



Maintenance and inspection Precautions

● do not change the wiring while the power is on, otherwise it may cause electric shock or injury.

● please perform wiring or inspection by professional technicians, otherwise it

may cause electric shock or product failure.

● please check the power after the power is off for at least 5 minutes. Even if the power is turned off,

high voltage may remain inside the servo drive. Therefore, do not touch the power terminal within

5 minutes after the power is turned off, otherwise it may cause electric shock.

●when replacing the servo drive, please back up the servo driver user parameters to be replaced before

the replacement, and transfer the backup to the new servo drive, and then restart the operation,

otherwise the machine may be damaged.



Accessories:



  Accessory name Image
Satandard Spare Parts Power terminal 11KW Digital Servo Drive CNC Motion Controller For CNC Lathe And Milling Machine 2 Adapt to E1,E2 structure drive
Cn3 encoder plug Encoder plug on the driver side
Cn4 control terminal plug Input/output signal terminals,user wiring
Encoder connection line The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer
needs Provide independent connector
Power line The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer
needs Provide independent connector
Drive monitoring line Connect and adjust the software for remote monitoring and firmware update
Purchasing Spare Parts USB to RS232 Adapter cable If necessary, self purchase
Ethernet communication line If necessary, self purchase


Certificates
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the
variable speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility
standards and its specific test methods), corresponding to the national standard GB12668.3-2012.

11KW Digital Servo Drive CNC Motion Controller For CNC Lathe And Milling Machine 3


Quality Checking:
Four times Production testing
Two Times 24 hoursTesting
100% Inspection Before Shipping
11KW Digital Servo Drive CNC Motion Controller For CNC Lathe And Milling Machine 4
Delivery Time and Shipping Way

1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.


Packing details of Servo Drive
Products E1(3-6A) E2(7-12A) E3(16-27A)
Ctn. Size 280*208*78 280*208*112 375*290*155



Packing:



Packing details of Servo Drive
Products E1(3-6A) E2(7-12A) E3(16-27A) C015(32-38A) C022(45-60A)
Ctn. Size 280*208*78 280*208*112 375*290*155 440*296*288 510*305*325

11KW Digital Servo Drive CNC Motion Controller For CNC Lathe And Milling Machine 5
