1000W 3.3Nm Closed Loop Servo System with 24 Bit Absolute Encoder
Product Details:
| Place of Origin: | China |
| Brand Name: | Vector |
| Certification: | CE |
| Model Number: | VEC-VC1-00623M-M-E / 80ME-00130A23-CF2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kit |
|---|---|
| Price: | To Be Discussed |
| Packaging Details: | 280*208*78mm |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 kits/month |
|
Detail Information |
|||
| Voltage: | 220V | Power: | 1 KW |
|---|---|---|---|
| Rated Current: | 5.4 A | Rated Speed: | 3000 Rpm |
| Rated Torgue: | 3.3 Nm | Phase: | 3 Phase |
| Motor Flange Size: | 80mm | Communication Protocols: | Modbus/CANopen/EtherCAT |
| Encoder: | 17/23, 24 Bit Absolute Encoder | Application: | Printing Machine |
| High Light: | 1000W Closed Loop Servo System,3.3Nm Closed Loop Servo System,3.3Nm Closed Loop Stepper Motor Kit |
||
Product Description

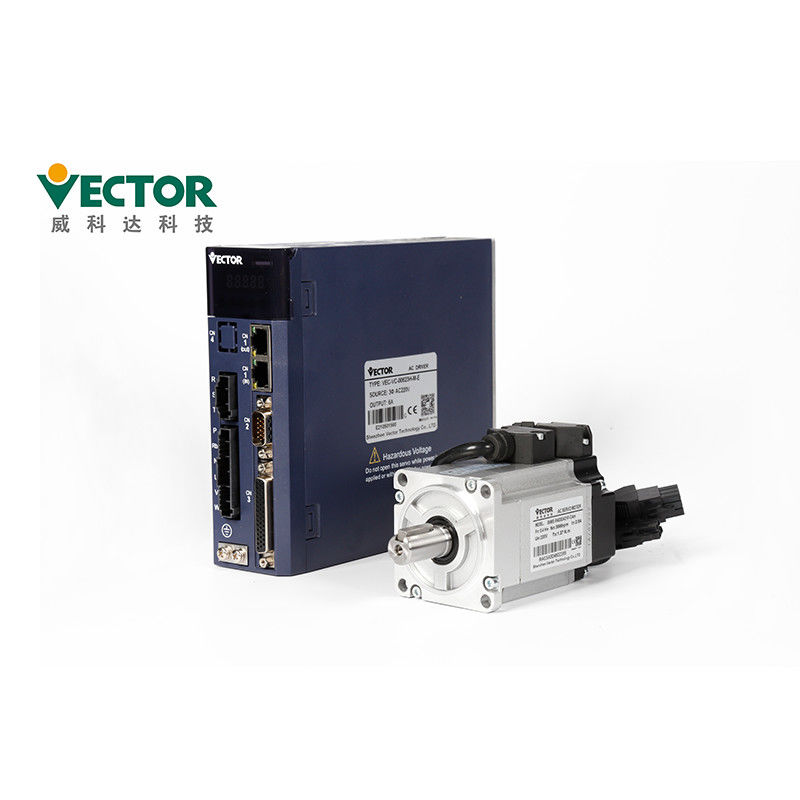

1000W 3.3Nm Fully Closed Loop Servo System Servo Drive With Servo Motor
Servo Drive + Servo Motor
Power Covers 200W-110KW
Single/Three Phase 220V/380V
Modbus / CanOpen / EtherCAT
Products Description
| Products | AFully Closed Loop Servo System |
| Brand | Vector |
| Model No. | VEC-VC1-00623M-M-E / 80ME-00130A23-CF2 |
| Power | 1KW |
| Voltage | 220V |
| Phase | Three Phase |
| Rated Speed | 3000 rpm |
| Rated Current | 5.4A |
| Rated Torgue | 3.3 Nm |
| Communication Protocols | Modbus/CANopen/EtherCAT |
| Encoder | 2500 line incremental + Hall encoder; 2500 line incremental; 17/23 bit Tamagawa absolute encoder; 24 bit Nikon absolute encoder |
Servo Drive Description- Detaails about a Servo Drive, how to select the Servo drive model and do installation?
● Install the driver on a dry and sturdy platform. Maintain good ventilation and
heat dissipation during installation and maintain good grounding.
● Please install in the specified direction to avoid malfunction.
● When installing, please ensure that the servo driver is kept at a specified
distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.
| Installation Environment Requirements |
Atmospheric Pressure | 86~106kPa |
| Mbient Humidity | 0~55℃ | |
| Ambient Temperature | 0~90%RH | |
| IP Rating | IP20 | |
| Vibration | 0~4.9m/s^2 |
Accessories
| Accessory name | Image | ||
| Satandard Spare Parts | Power terminal | |
Adapt to E1,E2 structure drive |
| Cn3 encoder plug | Encoder plug on the driver side | ||
| Cn4 control terminal plug | Input/output signal terminals,user wiring | ||
| Encoder connection line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
| Power line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
| Drive monitoring line | Connect and adjust the software for remote monitoring and firmware update | ||
| Purchasing Spare Parts | USB to RS232 Adapter cable | If necessary, self purchase | |
| Ethernet communication line | If necessary, self purchase |
Certificates
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the variable
speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility standards
and its specific test methods), corresponding to the national standard GB12668.3-2012.
Other Questions:
Q1. How to select the suitable model?
A: Please confirm your requirements for Rated Power, Current, Voltage,
Torque and select the suitable model based our model list;
Q2. How to set the programming system?
A: Our Servo drive support the Global Communication protocols: Modbus/CANopen/EtherCAT,
Please Just make the programming follow your experiences;
Q3. What's the power range about our servo system?
A: Our Power range covers 0.2-110KW, reach your requirements;
Q4. What's the encoder feedback interfaces we using?
A: We have multiple Encoder feedback interfaces, like : incremental/wire-saving encoder,
17-bit/23-bit/24-bit absolute encoder, resolver encoder, etc.
