Touch Screen 4.3Inch HMI Control Panels With Ethernet Port

Touch Screen 4.3Inch HMI Control Panels With Ethernet Port

Product Details:

Place of Origin: China
Brand Name: Vector
Certification: CE & RPHS
Model Number: VEC-2104S-T

Payment & Shipping Terms:

Minimum Order Quantity: 1 kit
Price: To Be Discussed
Packaging Details: 375*290*155mm, 280*208*112mm
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500-1000 kits /Month
Get Best Price Contact Now

Detail Information

Material: ABS / Aluminum Alloy Size: 7.4inch
Application: Printing Machine Communication: Ethernet
Standard: EN61000-6-4:2007 ROHS Product Name: HMI Interface Screen
High Light:

Touch Screen HMI Control Panels

,

4.3Inch HMI Control Panels

,

4.3Inch Touch Screen HMI Panels

Product Description

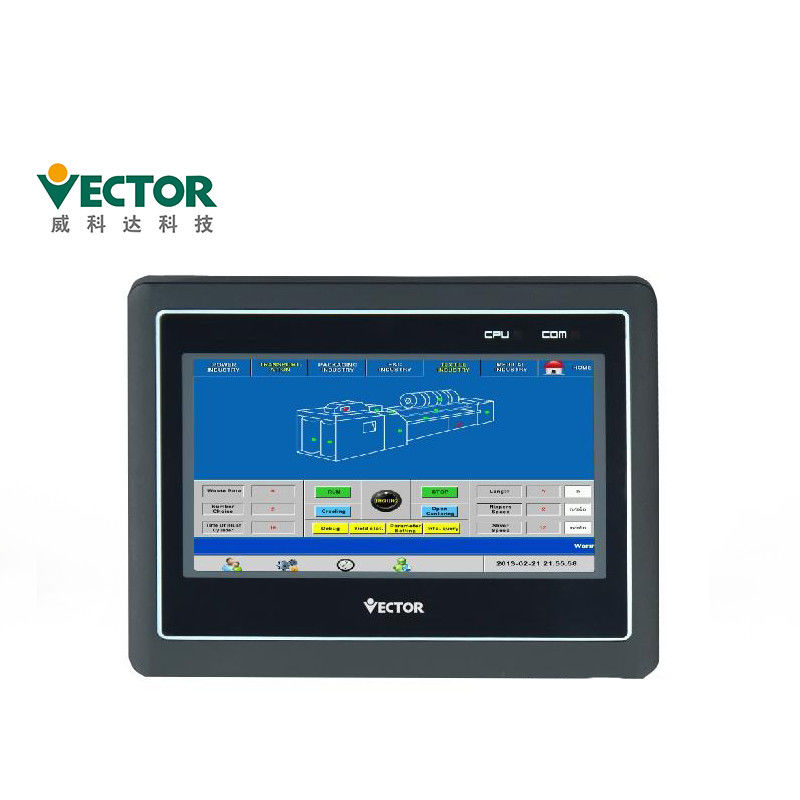

4.3 Inch Touch Screen Man-Machine Interface HMI With Ethernet Port



The Vector HMI touch screen inherits the classic design concept of low power consumption and high

reliability, and it is embedded with powerful and flexible and efficient configuration software. It not only

supports the connection of various series of meters, but also supports the smart meters of mainstream

brands on the market. , PLC, frequency converter and other equipment can be widely used in various

industrial, scientific research and civil scenes to provide you with high-quality application services.



Products Features:



Products HMI With Ethernet Port
Brand Vector
Model No. VEC-2104S-T
Size 4.3 inchs
Standard N61000-6-4:2007 ROHS
Communication Ethernet communication




Product Details:

Rated power: <10W

Rated voltage: DC 24V, working range DC 18V-32V

Power protection: use isolated power module, with lightning surge protection

Allow power loss: <5mS

CE&ROHS: Comply with EN61000-6-2:2005 standard

Comply with EN61000-6-4:2007 standard

Meet ROHS

Lightning surge ±4KW, group pulse ±4KW

Static contact 4KV, air discharge 8KV



Working Standards:

Storage temperature: -10~60℃ -20~70℃

Environmental humidity: 10%~90%RH (non-condensing)

Vibration resistance: 10~25Hz (X, Y, Z direction 2G/30 minutes)

Cooling method: natural air cooling Others:

Protection level: the front panel meets IP65 (installed with entrained panel cabinets), and the rear

shell of the fuselage meets IP20

Mechanical structure: The front panel is made of aluminum alloy, the surface is hardened and oxidized and

colored, and the back shell is made of aluminum alloy sheet metal, and the surface is painted.

Hole size: 260mm*202mm

Machine size: 275mm*215mm*39.6mm (excluding power terminals)

Whole machine weight: about 1500g



Models & description:

VEC-2070C-S VEC-2150X-T
VEC-2070i-S VEC-2070C-S1
VEC-2097C-S VEC-2070CG-S1
VEC-2104S-T VEC-2101S-S1
VEC-2121X-T VEC-2101SG-S1

Specifications:


VEC-2 104 S-T

   1    2   3   4  5


1. Brand code


2.1 means text products; 2 means man-machine interface products


3. Indicates that the display size 043 represents 4.3 inches; 070 represents 7 inches


4. C stands for resolution=800*480. S stands for resolution=1024*600; X stands for (SVGA=HD resolution=1024*768)


5. T stands for aluminum alloy shell, S stands for plastic shell



Packing & Shipping:



Packing details of Servo Drive
Products E1(3-6A) E2(7-12A) E3(16-27A) C015(32-38A) C022(45-60A)
Ctn. Size 280*208*78 280*208*112 375*290*155 440*296*288 510*305*325
Packing details of Motion Controller
Products VA Motion VA Expansion VE Motion VE Expansion(32) VE Expansion(76)
Ctn. Size 176*165*78 127*75*70 144*128*69 176*164*78 316*164*78



Delivery Time

Quantity 1-5 kits 50-100 kits 200-500 kits
Delivery time Within 3 days 5-10 days 15-25 days



1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.



Payment Terms:
Samples: 100% before delivery by Western Union.
Bulk Orders: 30% deposit, 70% before shipping by T/T or Western Union.



Quality Checking:
