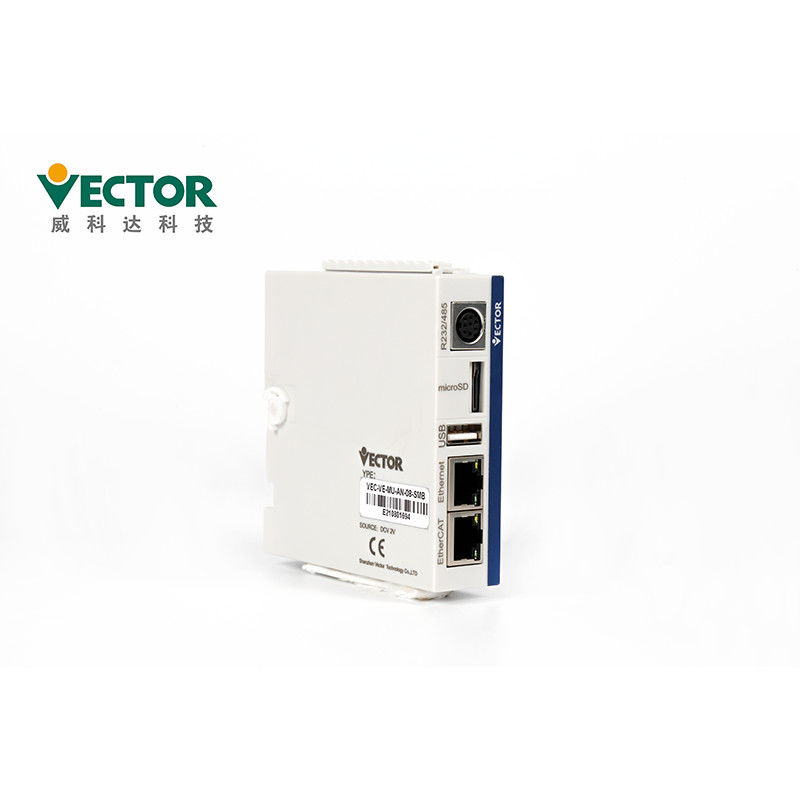

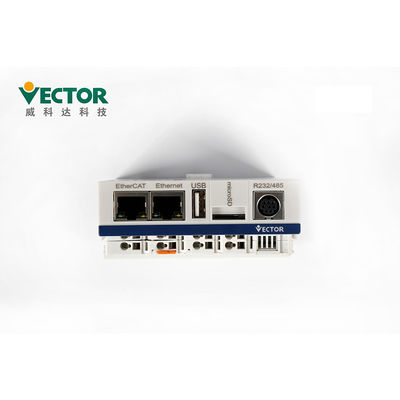

IO Expansion CE PLC Programmable Logic Controller Unlimited Axis
Product Details:
| Place of Origin: | China |
| Brand Name: | Vector |
| Certification: | CE |
| Model Number: | VEC-VE-MU-AN-PLC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kit |
|---|---|
| Price: | To Be Discussed |
| Packaging Details: | 144*128*69mm, 176*164*78mm, 316*164*78mm |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500-1000 kits /Month |
|
Detail Information |
|||
| Programming Too: | CODESYS | Language: | IEC61131-3 Standard |
|---|---|---|---|
| Axis: | Unlimited Axis | Certifictaes: | CE & FCC |
| Main Frequency: | 0.4GHZ | Application: | Cutting Machine |
| Highlight: | IO Expansion CE PLC Programmable Logic Controller,Unlimited Axis PLC Programmable Logic Controller,Unlimited Axis Programmable Logical Controller |
||
Product Description
CODESYS IEC61131-3 standard 0.4GHZ PLC programmable logic controller
The VE series motion controller uses the CODESYS programming tool, supports 6 programming
languages of IEC61131-3 international standard, and it is easy to use by application engineers.
Based on EtherCAT bus, Unlimited axis, supports local IO expansion, and also supports EtherCAT-based
distributed IO,Without Motion control library.
Products Features
| Products | PLC programmable logic controller |
| Brand | Vector |
| Model No. | VEC-VE-MU-AN-PLC |
| Axis | Unlimited Axis |
| Progarmming Tool | CODESYS |
| Programming Language | IEC61131-3 Standard |
| RMain frequency | 0.4GHZ |
| Expansion Units | IO Expansion, Digital, Analog, Encoder, Thermocouple, Hybrid |
| Communication Protocols | EtherCAT-Bus |
CODESYS Software:
CODESYS software is standard software for the development and application of VE PLC
programmable motion controller products. CODESYS software platform provides VE PLC
controllers with a complete configuration, programming, debugging, monitoring
environment, flexible and free to handle the powerful IEC61131-3 language.
The codesYS software enables the management of engineering and equipment,
providing the following configurations for PLC controller products:
Products details
The syntax of the IEC 61131-3 specification presents a set of mechanisms for implementing programmable
controllers across different target platforms. Through modular planning and design, the specification divides
control actions into two parts: logical operations and hardware actions. The logical part unifies the syntax
defined in IEC 61131-3 in a common description format and implements it, while the hardware actions are
designed with a proprietary firmware library for each hardware, allowing the control logic to use hardware
resources on each target platform. This design allows different control chips to execute control actions
designed in the IEC 61131-3 syntax, and designers only need to learn the IEC 61131-3 syntax to use
the supported control chips for programmable controller design. The IEC 61131-3 standard defines six
standard programming languages:
(Instruction List,IL)
(Ladder Diagram,LD)
(Function Block Diagram,FBD)
(Structured Text Language,STL)
(Sequential Function Chart,SFC)
(Continuous Function Chart,CFC)
The VE motion controller uses the CODESYS programming platform, which fully supports the PLCopen
specification and allows the user to refer to many standard function libraries; the high-level language
programming method makes it easy for PLC manufacturers and users to develop their own proprietary
function blocks and instruction libraries, and to borrow similar control programs to form industry-specific
"process packages", which can significantly improve the user's programming efficiency.
Expansion Units
Packing and Shipping
| Packing details of Motion Controller | |||||
| Products | VA Motion | VA Expansion | VE Motion | VE Expansion(32) | VE Expansion(76) |
| Ctn. Size | 176*165*78 | 127*75*70 | 144*128*69 | 176*164*78 | 316*164*78 |
Delivery Time
| Quantity | 1-5 kits | 50-100 kits | 200-500 kits |
| Delivery time | Within 3 days | 5-10 days | 15-25 days |
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
| Payment Terms: | |||||
| Samples: 100% before delivery by Western Union. | |||||
| Bulk Orders: 30% deposit, 70% before shipping by T/T or Western Union. |
Quality Checking:
Certificates
