• Ethernet IEC61131-3 Programmable Logic Controller Module For Mask Machine
  • Ethernet IEC61131-3 Programmable Logic Controller Module For Mask Machine

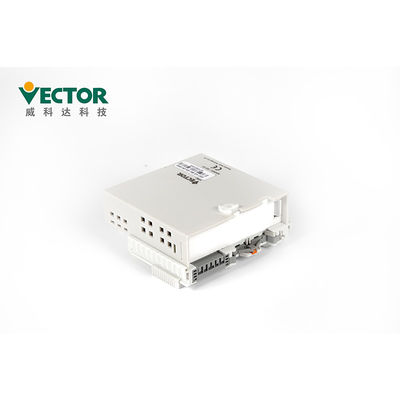

Ethernet IEC61131-3 Programmable Logic Controller Module For Mask Machine

Ethernet IEC61131-3 Programmable Logic Controller Module For Mask Machine

Product Details:

Place of Origin: China
Brand Name: Vector
Certification: CE & FCC
Model Number: VEC-VE-MU-AN-PLC

Payment & Shipping Terms:

Minimum Order Quantity: 1 kit
Price: To Be Discussed
Packaging Details: 144*128*69mm, 176*164*78mm, 316*164*78mm
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500-1000 kits /Month
Get Best Price Contact Now

Detail Information

Programming Tool: CODESYS Programming Tool Language: IEC61131-3 Standard
Axis: Multi Axis Certifictaes: CE & FCC
Main Frequency: 0.4GHZ Application: Mask Machine
High Light:

Mask Machine Ethernet Programmable Logic Controller Module

,

IEC61131-3 Programmable Logic Controller Module

,

IEC61131-3 Programmable Logic Controller System

Product Description

PLC Ethernet Communication Module Programmable Logic Controller For Mask Machine



The PLC motion controller uses the CODESYS programming tool, supports 6 programming

languages of IEC61131-3 international standard, and it is easy to use by application engineers.Based

on EtherCAT bus, Unlimited axis, supports local IO expansion, and also supports EtherCAT-based

distributed IO,Without Motion control library.



Products Features

Products PLC programmable logic controller
Brand Vector
Model No. VEC-VE-MU-AN-PLC
Axis Multi Axis
Progarmming Tool CODESYS programming tool
Programming Language IEC61131-3 Standard
RMain frequency 0.4GHZ
Expansion Units IO Expansion, Digital, Analog, Encoder, Thermocouple, Hybrid
Communication Protocols EtherCAT Bus,Ethernet communication



CODESYS Software:

CODESYS software is standard software for the development and application of VE PLC
programmable motion controller products. CODESYS software platform provides VE PLC
controllers with a complete configuration, programming, debugging, monitoring
environment, flexible and free to handle the powerful IEC61131-3 language.
The codesYS software enables the management of engineering and equipment,



Products details

Ethernet IEC61131-3 Programmable Logic Controller Module For Mask Machine 0

The syntax of the IEC 61131-3 specification presents a set of mechanisms for implementing programmable

controllers across different target platforms. Through modular planning and design, the specification divides

control actions into two parts: logical operations and hardware actions. The logical part unifies the syntax
defined in IEC 61131-3 in a common description format and implements it, while the hardware actions are

designed with a proprietary firmware library for each hardware, allowing the control logic to use hardware

resources on each target platform. This design allows different control chips to execute control actions

designed in the IEC 61131-3 syntax, and designers only need to learn the IEC 61131-3 syntax to use
the supported control chips for programmable controller design. The IEC 61131-3 standard defines six

standard programming languages:

(Instruction List,IL)
(Ladder Diagram,LD)
(Function Block Diagram,FBD)
(Structured Text Language,STL)
(Sequential Function Chart,SFC)
(Continuous Function Chart,CFC)



The VE motion controller uses the CODESYS programming platform, which fully supports the PLCopen

specification and allows the user to refer to many standard function libraries; the high-level language

programming method makes it easy for PLC manufacturers and users to develop their own proprietary

function blocks and instruction libraries, and to borrow similar control programs to form industry-specific

"process packages", which can significantly improve the user's programming efficiency.

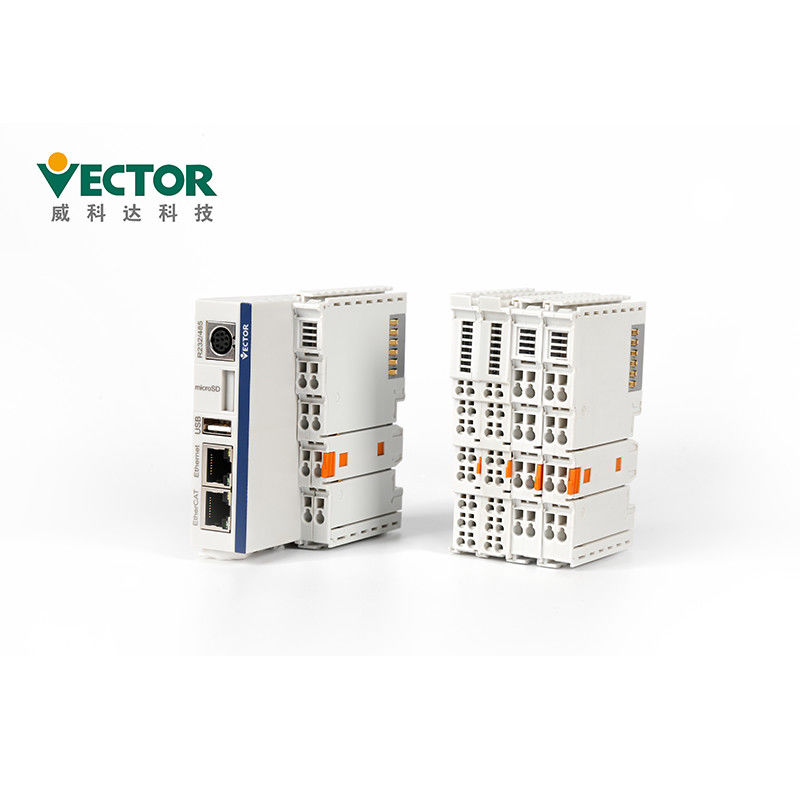

Expansion Units

Ethernet IEC61131-3 Programmable Logic Controller Module For Mask Machine 1

Packing and Shipping

Packing details of Motion Controller
Products VA Motion VA Expansion VE Motion VE Expansion(32) VE Expansion(76)
Ctn. Size 176*165*78 127*75*70 144*128*69 176*164*78 316*164*78

Ethernet IEC61131-3 Programmable Logic Controller Module For Mask Machine 2

Delivery Time

Quantity 1-5 kits 50-100 kits 200-500 kits
Delivery time Within 3 days 5-10 days 15-25 days



1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.



Payment Terms:
Samples: 100% before delivery by Western Union.
Bulk Orders: 30% deposit, 70% before shipping by T/T or Western Union.



Quality Checking:



Ethernet IEC61131-3 Programmable Logic Controller Module For Mask Machine 3

Certificates

Ethernet IEC61131-3 Programmable Logic Controller Module For Mask Machine 4
