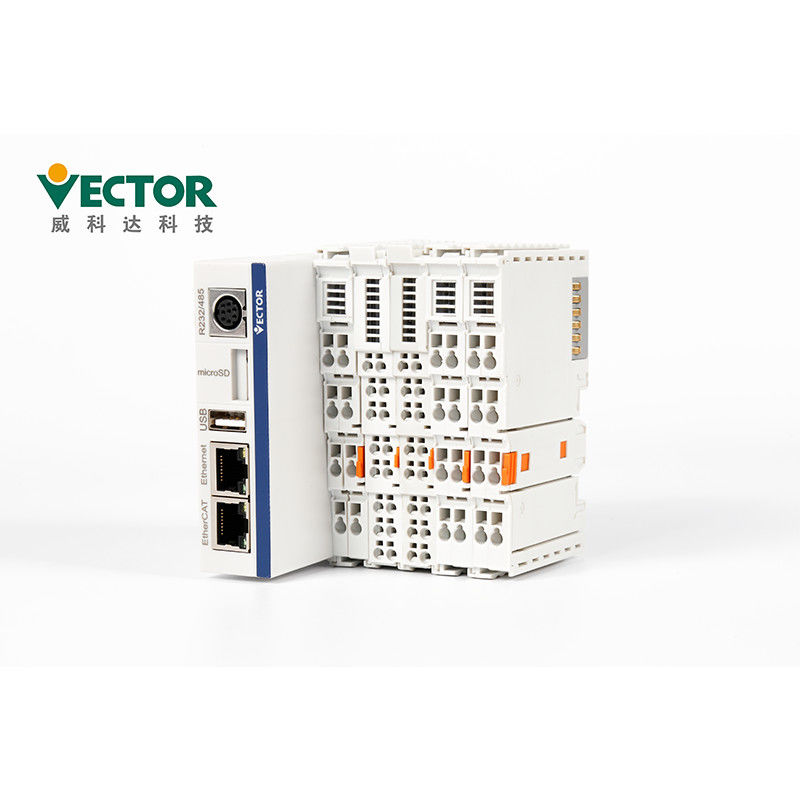

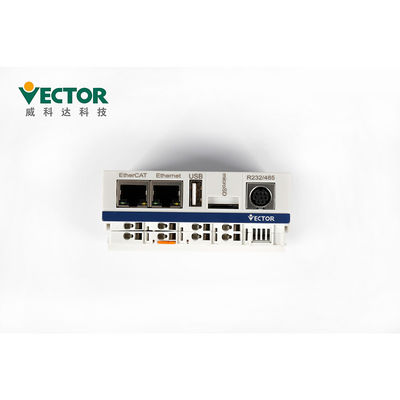

CODESYS FCC EtherCAT Motion Controller For Packing Machine

CODESYS FCC EtherCAT Motion Controller For Packing Machine

Product Details:

Place of Origin: China
Brand Name: Vector
Certification: CE
Model Number: VEC-VE-MU-AN-16-SMB

Payment & Shipping Terms:

Minimum Order Quantity: 1 kit
Price: To Be Discussed
Packaging Details: 144*128*69mm, 176*164*78mm, 316*164*78mm
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500-1000 kits /Month
Get Best Price Contact Now

Detail Information

Programming Too: CODESYS Language: IEC61131-3 Standard
Axis: 16 Axis Expansion: IO, Digital, Analog, Encoder, Thermocouple, Hybrid
Certifictaes: CE,FCC Communication Protocols: EtherCAT Bus
Frequency: 0.8GHz Communication Functions: RS485, Ethernet And USB
High Light:

CODESYS FCC EtherCAT Motion Controller

,

FCC EtherCAT Motion Controller

,

FCC EtherCAT Servo Controller

Product Description

1.2GHZ RS485/232 Motion Controller With 32 Axis And 16 I/O Expansion Units



Motion control function block conforms to PLCOPEN2.0.

64 servo axes can be connected, the real axis and the virtual axis can be controlled at the same time,

the bus communicates at a rate of 100Mbps, the distance between the two servo slave stations can reach

100M, and the full digital IO configuration of the entire expansion system of the bus can reach 30,000 points.



Products Features

Products Electric Cam And Gear Control Motion Controller
Brand Vector
Model No. VEC-VE-MU-AN-16-SMB
Axis 16 Axis
Progarmming Tool CODESYS
Programming Language

Supports IEC61131-3 programming languages: FBD, LD, IL, ST,SFC and CFC

RMain frequency 0.8GHZ
Expansion Units Digital, Analog, Encoder, Thermocouple, Hybrid
Communication Protocols EtherCAT Bus



The syntax of the IEC 61131-3 specification presents a set of mechanisms for implementing programmable

controllers across different target platforms. Through modular planning and design, the specification divides

control actions into two parts: logical operations and hardware actions. The logical part unifies the syntax
defined in IEC 61131-3 in a common description format and implements it, while the hardware actions are

designed with a proprietary firmware library for each hardware, allowing the control logic to use hardware

resources on each target platform. This design allows different control chips to execute control actions

designed in the IEC 61131-3 syntax, and designers only need to learn the IEC 61131-3 syntax to use
the supported control chips for programmable controller design. The IEC 61131-3 standard defines six

standard programming languages:

(Instruction List,IL)
(Ladder Diagram,LD)
(Function Block Diagram,FBD)
(Structured Text Language,STL)
(Sequential Function Chart,SFC)
(Continuous Function Chart,CFC)



The VE motion controller uses the CODESYS programming platform, which fully supports the PLCopen

specification and allows the user to refer to many standard function libraries; the high-level language

programming method makes it easy for PLC manufacturers and users to develop their own proprietary

function blocks and instruction libraries, and to borrow similar control programs to form industry-specific

"process packages", which can significantly improve the user's programming efficiency.



A schematic diagram of the VE controller architecture integration is shown below:

CODESYS FCC EtherCAT Motion Controller For Packing Machine 0



CODESYS Software:

CODESYS software is standard software for the development and application of VE
programmable motion controller products. CODESYS software platform provides VE
controllers with a complete configuration, programming, debugging, monitoring
environment, flexible and free to handle the powerful IEC language.
The codesYS software enables the management of engineering and equipment,
providing the following configurations for VE controller products:

1. CPU configuration;
2. I/O module configuration;
3. EtherCAT bus;
4. ModbusRTU/ModbusTCP bus;
5. Standardized programming (IEC61131-3 compliant).
6. Supports all six programming languages: Structured Text (ST), Function Block Chart
7. (FBD), Instruction List (IL), Keystone (LD), Sequential Function Map (SFC), and
8. IEC61131-3 Extended Programming Language Continuous Function Map (CFC)
9. Flexible and comprehensive feature block libraries and support user-defined libraries
10. Offline simulation function,do not need to connect PLC hardware,complete the program simulation debugging
11. Intelligent debugging error check function
12. Compile errors, quickly locate programming errors, and diagnose logs
13. Sample tracking
14. The time series chart of the process variable is established

Products Models:

VEC-VE-MU-AN-08-SMB Main frequency 0.4GHZ, 8-axis operation control, in line with 61131-3 standard, motion control library
VEC-VE-MU-AN-16-SMB Main frequency 0.8GHZ, 16-axis operation control, in line with 61131-3 standard, motion control library
VEC-VE-MU-AN-32-SMB Main frequency 1.2GHZ, 32-axis operation control, in line with 61131-3 standard, motion control library
VEC-VE-MU-AN-64-SMB

Main frequency 1.6GHZ, 64-axis operation control, in line with 61131-3 standard, motion control library




Expansion Units



EtherCAT bus coupler, digital input output expansion module, analog input output

expansion module, thermocouple expansion module, encoder (with probe function,

can send AB phase differential pulse) expansion module, hybrid expansion module.



16-point DI input, 16-point DO output (expandable 2-way encoder count)

input and output can be NPN or PNP

CODESYS FCC EtherCAT Motion Controller For Packing Machine 1

Packing and Shipping

Packing details of Motion Controller
Products VA Motion VA Expansion VE Motion VE Expansion(32) VE Expansion(76)
Ctn. Size 176*165*78 127*75*70 144*128*69 176*164*78 316*164*78

CODESYS FCC EtherCAT Motion Controller For Packing Machine 2

Delivery Time

Quantity 1-5 kits 50-100 kits 200-500 kits
Delivery time Within 3 days 5-10 days 15-25 days



1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.



Certificates:



We got CE and FCC sertificates for the VE series Motion controller.
