380V 75KW Universal Servo Drive Three Phase High Torque
Product Details:
Place of Origin: | China |
Brand Name: | Vector |
Certification: | CE |
Model Number: | VEC-VC-15033H-M-EA |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 kit |
---|---|
Price: | To Be Discussed |
Packaging Details: | 280*208*78mm,375*290*155mm |
Delivery Time: | 3-5 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 500 kits/month |
Detail Information |
|||
Voltage: | 380V | Power: | 75KW |
---|---|---|---|
Phase: | 3 Phase | Communication Protocols: | CanOpen |
Encoder: | 17 Bit Absolute Encoder; | Rated Current: | 150A |
Input/Output: | Pulse / Analog | Control Mode: | Torque |
Application: | CNC | Product Name: | High Torque Precise Servo Drive |
High Light: | 380V Universal Servo Drive,75KW Universal Servo Drive |
Product Description

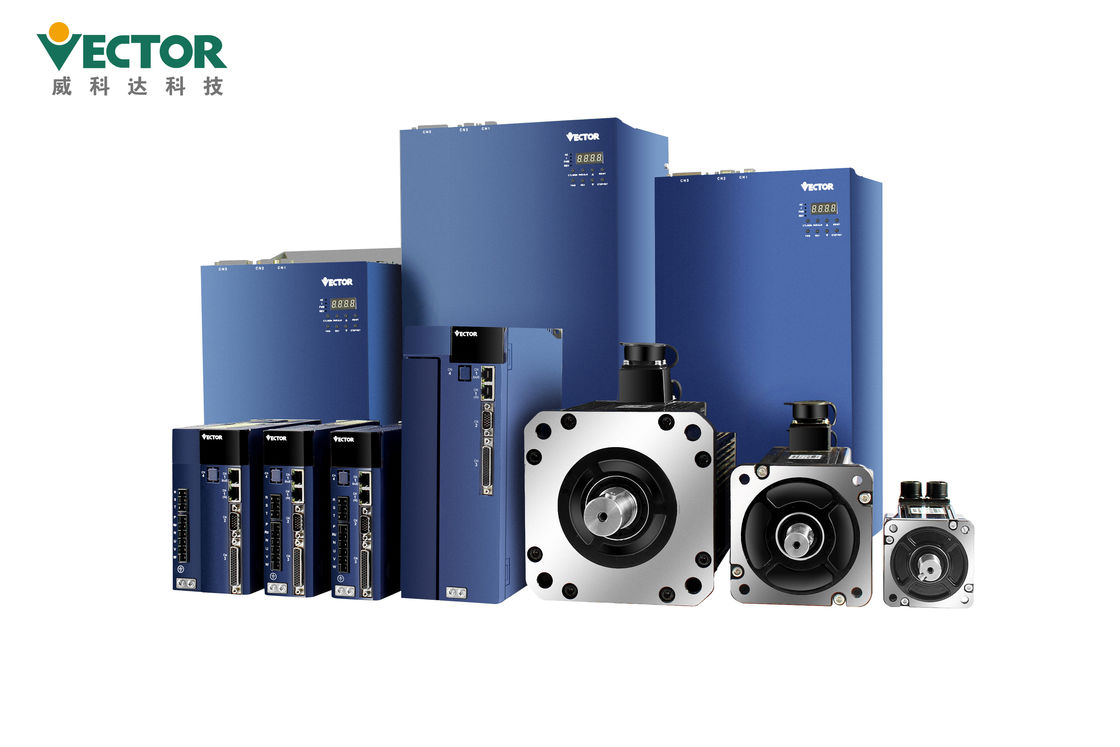

380V 75KW Three Phase Asynchronous/Synchronous High Torque Precise Servo Drive
High Torque Precise Servo Drive
Power 75KW
Three Phase 380V
CanOpen / EtherCAT
Torque Control Mode
17 bit absolute encoder;
Products Description
Product Name | High Torque Precise Servo Drive |
Brand | Vector |
Model No. | VEC-VC-15033H-M-EA |
Power | 75KW |
Input/Output | Pulse / Analog |
Voltage | 380V |
Phase | Three Phase |
Rated Current | 150A |
Communication Protocols | CanOpen / EtherCAT |
Encoder | 17 bit absolute encoder; |
Installation Precautions
Installation Environment Requirements |
Atmospheric Pressure | 86~106kPa |
Mbient Humidity | 0~55℃ | |
Ambient Temperature | 0~90%RH | |
IP Rating | IP20 | |
Vibration | 0~4.9m/s^2 |
● When installing, do not block the suction and exhaust ports, and do not allow foreign objects
inside the product to enter,otherwise it may cause malfunction or fire due to aging of internal components.
● Do not place heavy objects on or under this product as this may result in injury.
● Please install in the following environment:
1.places without direct sunlight;
2.Locations where the ambient temperature is in the range of 0 ° C to 55 ° C;
3.Relative humidity in the range of 0% to 95%, and no condensation;
4.Locations free of water droplets, vapors, dust and oily dust;
5.Locations where there is no high heat device;
6.Non-corrosive, flammable gas and liquid sites;
7.It is not easy to splash water, oil and medicine;
8.places that are not exposed to radioactive radiation;
9.Strong and vibration-free places;
10.Locations where there is no electromagnetic noise interference.

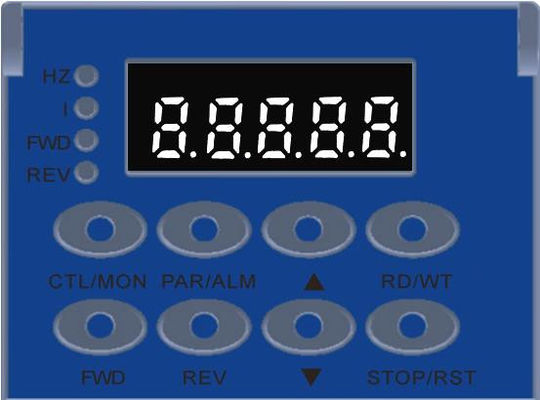

The panel contains 8 buttons and 5 digital tubes. Only 5 of the 8 buttons can be used, and the
remaining 3 buttons reserved. The general functions of the five buttons are shown in the table below.
Key Name | Key function |
PAR/ALM | mode switch, return to the previous menu |
▲(add) | increase flashing bit value of the LED digital tube |
▼(dec) | Decrease flashing digit value of the LED digital tube |
STOP/RST | Moves the blinking LED tube to the left; checks the high value of data longer than 5 bits; Fault reset;execute Fn function |
RD/WT | read/write parameter values;enter fn page |
Accessories:
Accessory name | Image | ||
Satandard Spare Parts | Power terminal | ![]() |
Adapt to E1,E2 structure drive |
Cn3 encoder plug | Encoder plug on the driver side | ||
Cn4 control terminal plug | Input/output signal terminals,user wiring | ||
Encoder connection line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
Power line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
Drive monitoring line | Connect and adjust the software for remote monitoring and firmware update | ||
Purchasing Spare Parts | USB to RS232 Adapter cable | If necessary, self purchase | |
Ethernet communication line | If necessary, self purchase |
Certificates
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the
variable speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility
standards and its specific test methods), corresponding to the national standard GB12668.3-2012.
Quality Checking:
Four times Production testing
Two Times 24 hoursTesting
100% Inspection Before Shipping
Delivery Time and Shipping Way
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
Packing details of Servo Drive | |||
Products | E1(3-6A) | E2(7-12A) | E3(16-27A) |
Ctn. Size | 280*208*78 | 280*208*112 | 375*290*155 |
