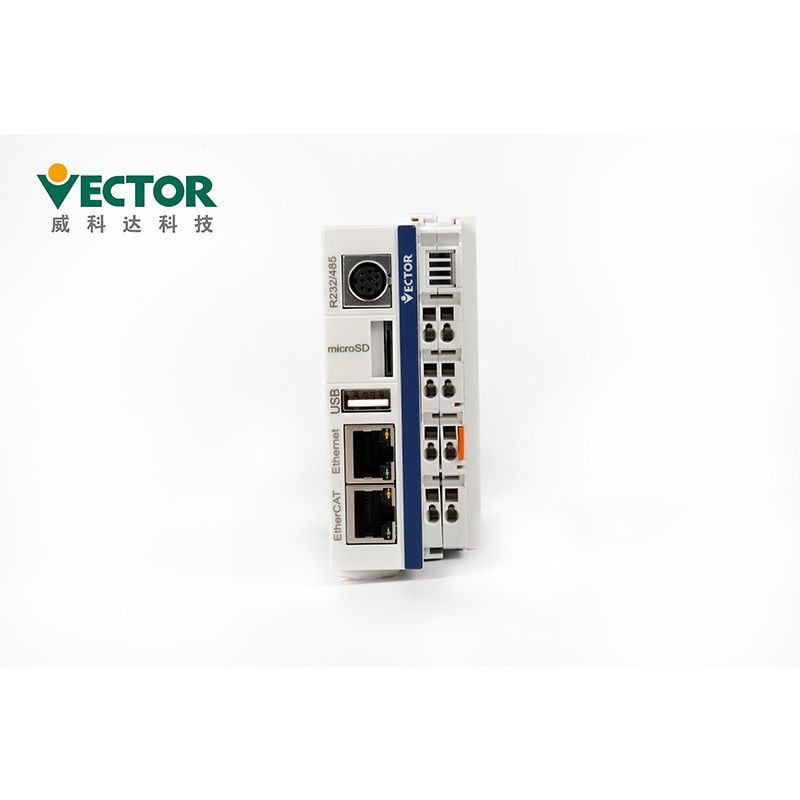

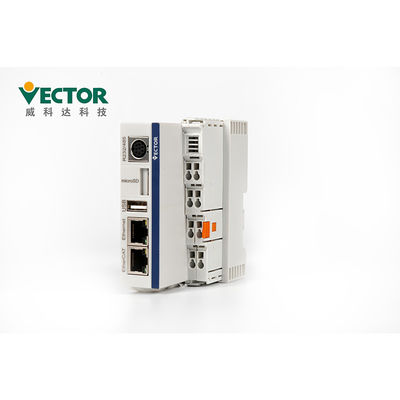

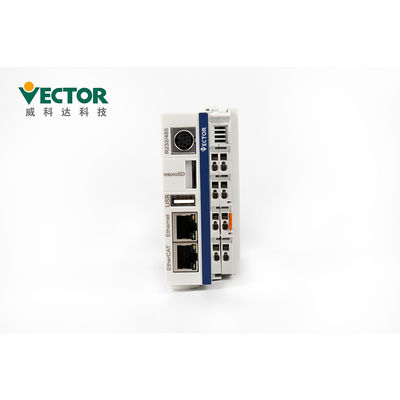

0.4GHZ EtherCAT Motor Controller With 8 Axis IEC61131-3 Standard
Product Details:
| Place of Origin: | China |
| Brand Name: | Vector |
| Certification: | CE |
| Model Number: | VEC-VE-MU-AN-08-SMB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kit |
|---|---|
| Price: | To Be Discussed |
| Packaging Details: | 144*128*69mm, 176*164*78mm, 316*164*78mm |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500-1000 kits /Month |
|
Detail Information |
|||
| Programming Too: | CODESYS | Language: | IEC61131-3 Standard |
|---|---|---|---|
| Axis: | 8 Axis | Expansion: | IO, Digital, Analog, Encoder, Thermocouple, Hybrid |
| Certifictaes: | CE,FCC | Communication Protocols: | EtherCAT |
| Highlight: | 0.4GHZ EtherCAT Motor Controller,8 Axis EtherCAT Motor Controller,0.4GHZ 8 Axis Motion Controller |
||
Product Description
CODESYS IEC61131-3 standard 0.4GHZ Motion controller EatherCAT with 8 Axis
The VE series motion controller uses the CODESYS programming tool, supports 6 programming languages
of IEC61131-3 international standard, and it is easy to use by application engineers.Based on EtherCAT bus,
the number of motion control axis is up to 64; a one-stop solution, supports local IO expansion, and also supports
EtherCAT-based distributed IO, universal Ethernet, serial; supports real-time multi-task control, And with advanced
and easy-to-use simulation tools; at the same time, it integrates abundant motion control function blocks and a
powerful CPU.It maximizes the beauty of motion control.
Products Features
| Products | Motion Controller |
| Brand | Vector |
| Model No. | VEC-VE-MU-AN-08-SMB |
| Axis | 8 Axis |
| Progarmming Tool | CODESYS |
| Programming Language | IEC61131-3 |
| RMain frequency | 0.4GHZ |
| Expansion Units | Digital, Analog, Encoder, Thermocouple, Hybrid |
| Communication Protocols | EtherCAT |
CODESYS Software:
CODESYS software is standard software for the development and application of VE
programmable motion controller products. CODESYS software platform provides VE
controllers with a complete configuration, programming, debugging, monitoring
environment, flexible and free to handle the powerful IEC language.
The codesYS software enables the management of engineering and equipment,
providing the following configurations for VE controller products:
1. CPU configuration;
2. I/O module configuration;
3. EtherCAT bus;
4. ModbusRTU/ModbusTCP bus;
5. Standardized programming (IEC61131-3 compliant).
6. Supports all six programming languages: Structured Text (ST), Function Block Chart
(FBD), Instruction List (IL), Keystone (LD), Sequential Function Map (SFC), and
IEC61131-3 Extended Programming Language Continuous Function Map (CFC)
7. Flexible and comprehensive feature block libraries and support user-defined
libraries
8. Offline simulation function, do not need to connect PLC hardware, complete the
program simulation debugging
9. Intelligent debugging error check function
10. Compile errors, quickly locate programming errors, and diagnose logs
11. Sample tracking
12. The time series chart of the process variable is established
Products Models:
| VEC-VE-MU-AN-08-SMB | Main frequency 0.4GHZ, 8-axis operation control, in line with 61131-3 standard, motion control library |
| VEC-VE-MU-AN-16-SMB | Main frequency 0.8GHZ, 16-axis operation control, in line with 61131-3 standard, motion control library |
| VEC-VE-MU-AN-32-SMB | Main frequency 1.2GHZ, 32-axis operation control, in line with 61131-3 standard, motion control library |
| VEC-VE-MU-AN-64-SMB |
Main frequency 1.6GHZ, 64-axis operation control, in line with 61131-3 standard, motion control library |
Expansion Units
EtherCAT bus coupler, digital input output expansion module, analog input output
expansion module, thermocouple expansion module, encoder (with probe function,
can send AB phase differential pulse) expansion module, hybrid expansion module.
Packing and Shipping
| Packing details of Motion Controller | |||||
| Products | VA Motion | VA Expansion | VE Motion | VE Expansion(32) | VE Expansion(76) |
| Ctn. Size | 176*165*78 | 127*75*70 | 144*128*69 | 176*164*78 | 316*164*78 |
Delivery Time
| Quantity | 1-5 kits | 50-100 kits | 200-500 kits |
| Delivery time | Within 3 days | 5-10 days | 15-25 days |
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
Certificates:
We got CE and FCC sertificates for the VE series Motion controller.
