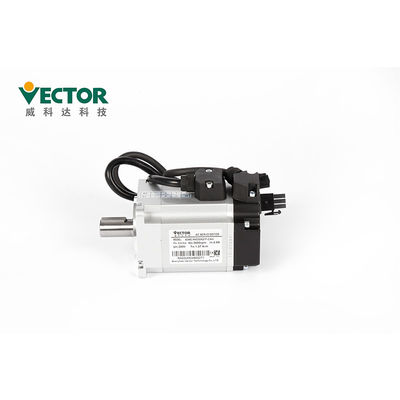

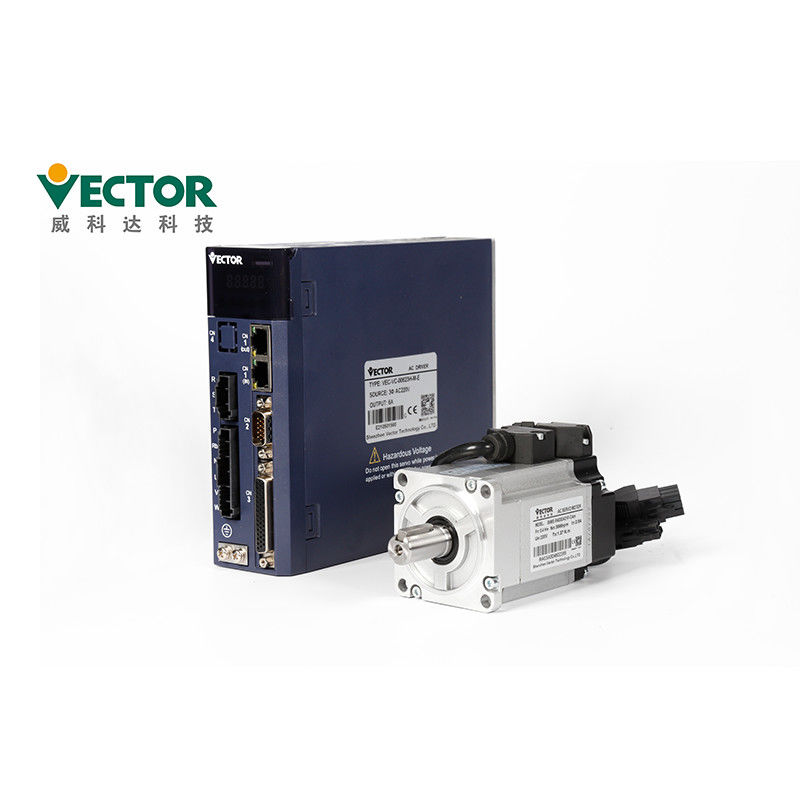

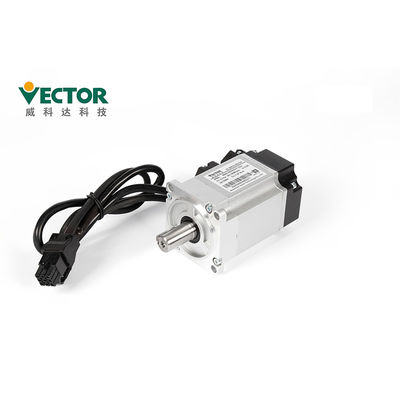

Vector 750watt Servo Drive And Motor 80mm Motor Flange
Product Details:
| Place of Origin: | China |
| Brand Name: | Vector |
| Certification: | CE |
| Model Number: | VEC-VC1-00623M-M-E / 80ME-R7530A23-CF2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kit |
|---|---|
| Price: | USD 150-250 / kit |
| Packaging Details: | 280*208*78mm |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 kits/month |
|
Detail Information |
|||
| Voltage: | 220V | Power: | 0.75 KW |
|---|---|---|---|
| Rated Current: | 5 A | Rated Speed: | 3000 Rpm |
| Rated Torgue: | 2.4 N.m | Phase: | 3 Phase |
| Motor Flange Size: | 80mm | Communication Protocols: | Modbus/CANopen/EtherCAT |
| Encoder: | 17/23, 24 Bit | ||
| High Light: | 80mm Servo Drive And Motor,750watt Servo Drive And Motor,750watt Servo Motor And Controller Kits |
||
Product Description
750watt 3000rpm Modbus/CANopen/EtherCAT Servo System with Absolute Encoder
Vector Tech. Focus on Servo system for more than 17 years.
More Flexible, More Accurate
Servo Drive + Servo Motor
Power Covers 200W-110KW
Single/Three Phase 220V/380V
Modbus / CanOpen / EtherCAT
Location, Speed and Torque Control Mode
2500 line incremental + Hall encoder; 2500 line incremental; 17/23 bit Tamagawa absolute encoder;
24 bit Nikon absolute encoder
Products Description
| Products | Servo Drive+Servo Motor |
| Brand | Vector |
| Model No. | VEC-VC1-00623M-M-E / 80ME-R7530A23-CF2 |
| Power | 0.75KW |
| Voltage | 220V |
| Phase | Three Phase |
| Rated Speed | 3000 rpm |
| Rated Current | 5A |
| Rated Torgue | 2.4 N.m |
| Communication Protocols | Modbus/CANopen/EtherCAT |
| Encoder | 2500 line incremental + Hall encoder; 2500 line incremental; 17/23 bit Tamagawa absolute encoder; 24 bit Nikon absolute encoder |
How is the Servo System works? The Location control model, Speed control model and Trogue control model.
| Voltage | Control Mode | Single-phase / three-phase full-controlled rectification SVPWM modulation |
| Encoder | Encoder Feedback | 2500 pulse incremental + Hall encoder; 2500 pulse incremental; 17bit Tamagawa absolute encoder; 23bit Tamagawa absolute encoder; 24bit Nikon absolute encoder; |
| Pulse Command Input | Pulse Type | Differential input,Open collector |
| Frequency Range | Differential input:0-500kHz,pulse width greater than 1us Open collector: 0-300kHz,pulse width greater than 2.5us |
|
| Pulse Mode | pulse + direction; AB pluses; CW+CCW; | |
| Analog Input | Voltage Range | -10V to 10V |
| Input Impedance | 10kΩ | |
| Maximum Frequency | 1.5kHz | |
| DI/DO Interface Type | NPN/PNP | |
| Communication | Modbus/CANopen/EtherCAT | |

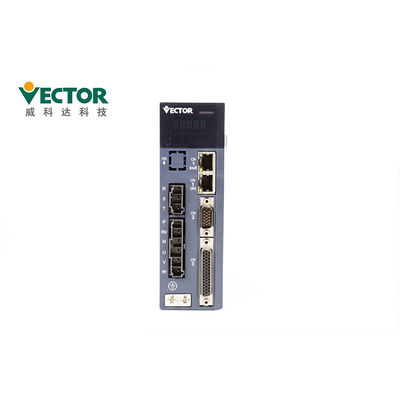

Servo Drive Description- Detaails about a Servo Drive, how to select the Servo drive model and do installation?
Accessories
| Accessory name | Image | ||
| Satandard Spare Parts | Power terminal | |
Adapt to E1,E2 structure drive |
| Cn3 encoder plug | Encoder plug on the driver side | ||
| Cn4 control terminal plug | Input/output signal terminals,user wiring | ||
| Encoder connection line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
| Power line | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector |
||
| Drive monitoring line | Connect and adjust the software for remote monitoring and firmware update | ||
| Purchasing Spare Parts | USB to RS232 Adapter cable | If necessary, self purchase | |
| Ethernet communication line | If necessary, self purchase |
Certificates
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the variable
speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility standards
and its specific test methods), corresponding to the national standard GB12668.3-2012.
Delivery Time and Shipping Way
| Quantity | 1-5 kits | 50-100 kits | 200-500 kits |
| Delivery time | Within 3 days | 5-10 days | 15-25 days |
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
